Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007974
Model:      2090Y1-S Ratio:      4.471:1
MO# or S/N      8-066811-01 Alt. S/N
IP Speed      1243 RPM HP rating      150 HP Cat. Rating
OP Speed:      278.1 SF / SC      2.09
Date      06/81 Oil Capacity      5.5
A D D I T I O N A L      C A T A L O G      I N F O R M A T I O N
Torque Rating      58,400 Lb-Inches Shaft Diameters High Speed:  2.250
Low Speed:  4.500
Weight      1,500 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal Rating
W/No Cooling
1750
4.471:1

380 RPM
428 HP
218
1430
310 RPM
370 HP
327
1170
255 RPM
316 HP
Thermal Exceeds Mechanical
870
190 RPM
246 HP
Thermal Exceeds Mechanical
720
155 RPM
210 HP
Thermal Exceeds Mechanical
580
130 RPM
180 HP
Thermal Exceeds Mechanical
Notes:

Condition: Used





Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

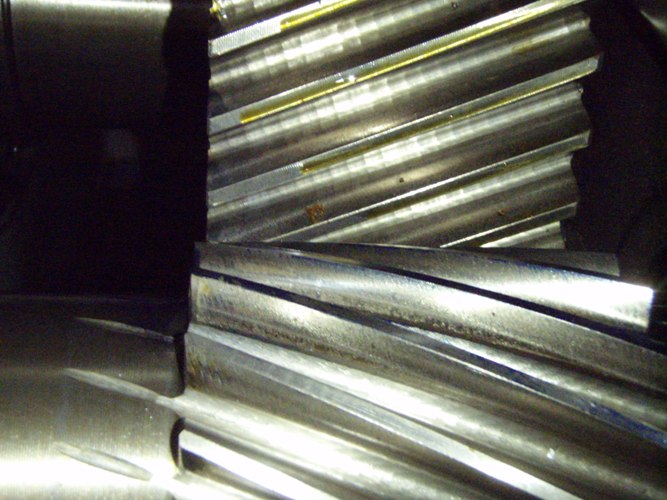

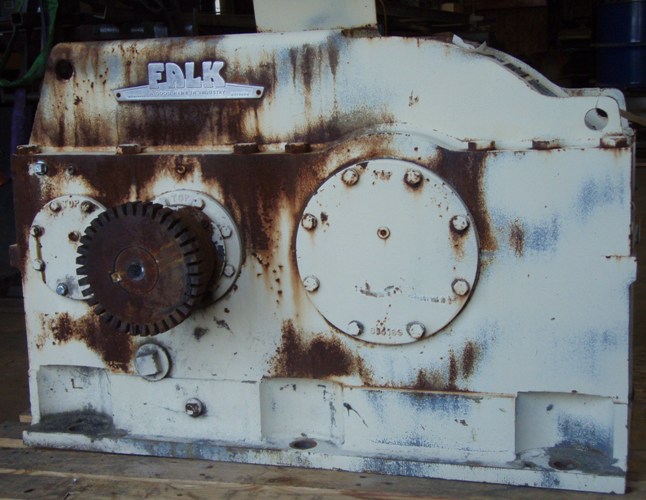

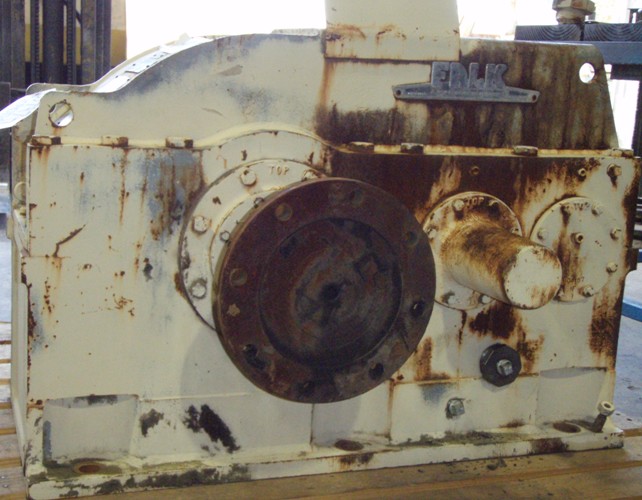

Click on images for larger view.
