Klistoff Equipment & Machinery, Inc.
- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007977
Model:      2080Y1A
 		Ratio:      4.107
MO# or S/N      6-560930-01 Alt. S/N
IP Speed      1170 HP rating      125 Cat. Rating
OP Speed:      284.9 SF / SC      2.13
Date       Oil Capacity      4 3/4
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      55,000 Lb-Inches Shaft Diameters High Speed:  2.500
Low Speed:  4.000
Weight      1,100 Lbs Approx. Assembly      18
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
4.107:1

420 RPM
373 HP
1430 RPM
350 RPM
316 HP
1170 RPM
280 RPM
267 HP
870 RPM
215 RPM
208 HP
720 RPM
175 RPM
176 HP
580 RPM
140 RPM
146 HP
Notes:
Condition: Used


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

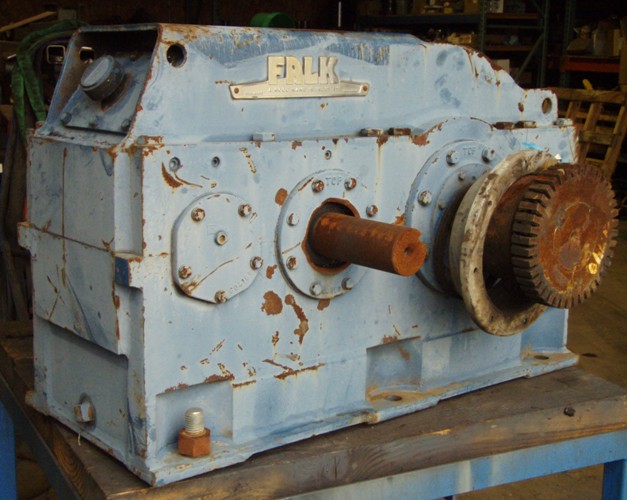

Click on images for larger view.
