- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007978
Model:      1070FC2A
Ratio:      8.996
MO# or S/N      86A0913 01 Alt. S/N
IP Speed      1800 HP rating      50 Cat. Rating
OP Speed:      200 SF / SC      2.42
Date      7/86 Oil Capacity      5.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      39,200 Lb-Inches Shaft Diameters High Speed:  2.1250
Low Speed:  3.250
Weight      500 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
8.996 :1

190 RPM
121 HP
1430 RPM
155 RPM
101 HP
1170 RPM
125 RPM
83.6 HP
870 RPM
95 RPM
62.9 HP
720 RPM
77 RPM
52.5 HP
580 RPM
62 RPM
42.6 HP
Notes:
Condition:Used


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

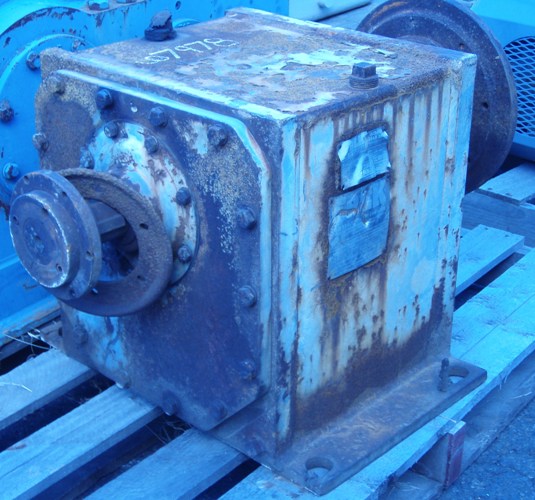

Click on images for larger view.
