- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007980
Model:      1090FZ4A 002
 		Ratio:       428.03
MO# or S/N      94-0A0118-01 Alt. S/N
IP Speed      1750 HP rating      6.32 Cat. Rating
OP Speed:      4.0 SF / SC      1.000
Date      02-94 Oil Capacity      15.5
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      97,500 Lb-Inches Shaft Diameters High Speed:  1.6250
Low Speed:  4.000
Weight      960 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
428.03 :1

4.0 RPM
6.32 HP
1430 RPM
3.2 RPM
5.18 HP
1170 RPM
2.7 RPM
4.24 HP
870 RPM
2.0 RPM
3.16 HP
720 RPM
1.6 RPM
2.62 HP
580 RPM
1.3 RPM
2.11 HP
Notes:
Condition:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

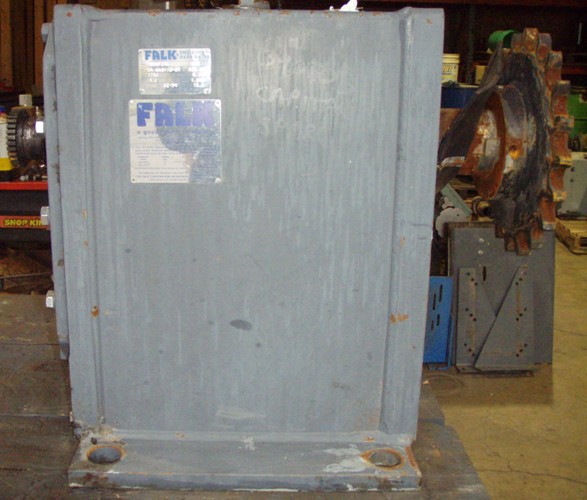

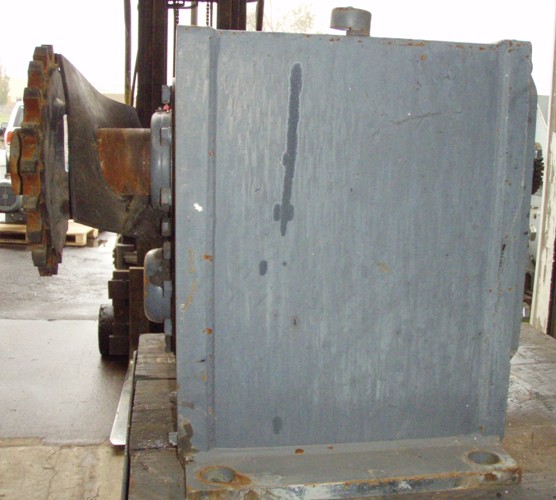

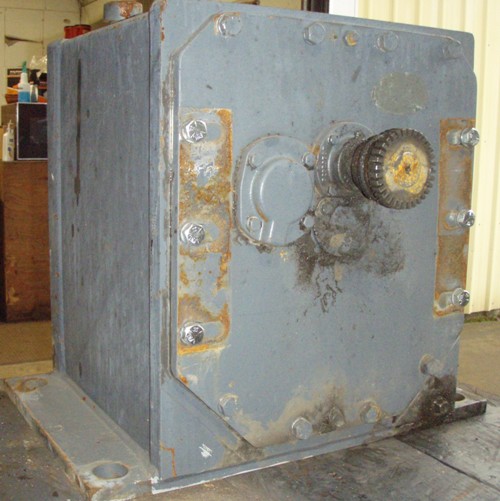

Click on images for larger view.
