- Speed Reducer Data Sheet -
HOME

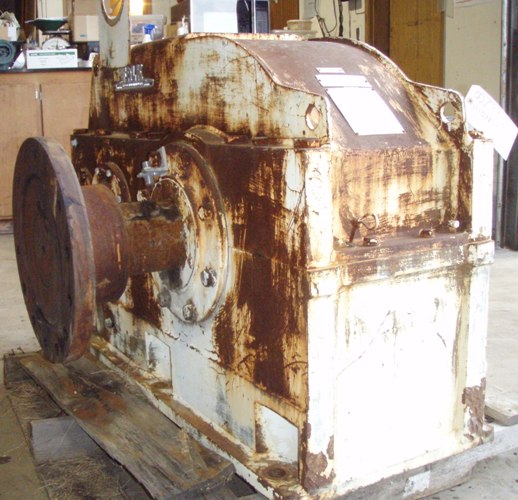

N A M E P L A T E       D A T A
Manufacturer:      FALK Our ID No.      007995
Model:      1110YF1-S
Ratio:      2.704
MO# or S/N      8-066810-01 Alt. S/N
IP Speed      903 HP rating      700 Cat. Rating
OP Speed:      333.9 SF / SC      1.51
Date       Oil Capacity
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      950,000 Lb-Inches Shaft Diameters High Speed:  4.000
Low Speed:  5.500
Weight      2,700 Lbs Approx. Assembly      19
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
2.704:1

950 RPM
HP
1430 RPM
780 RPM
2127 HP
1170 RPM
640 RPM
1779 HP
870 RPM
470 RPM
1364 HP
720 RPM
390 RPM
1150 HP
580 RPM
320 RPM
944 HP
Notes:
Condition: USED
