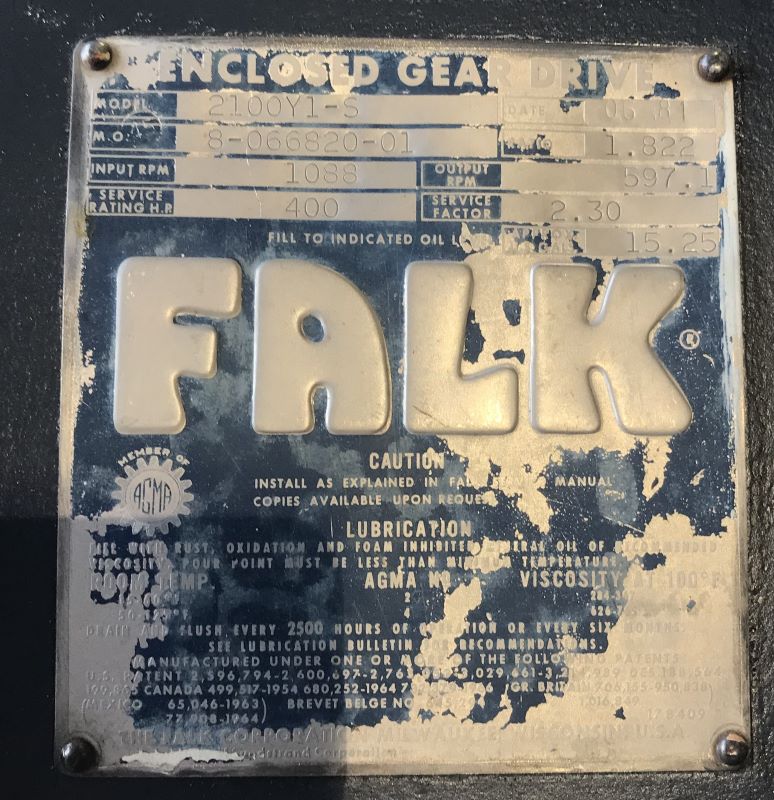

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | |||
| Model: | 2100Y1S | Ratio: | 1.822 | ||
| MO# or S/N | 8-066820-01 | Alt. S/N | |||
| IP Speed: | 1088 | HP rating: | 400 | Cat. Rating: | |
| OP Speed: | 597.1 | SF / SC | 2.30 | ||
| Date: | Oil Capacity: | ||||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 98,300 Lb-Inches | High Speed Shaft Dia. | 3.000 | ||
| Catalog Weight | 2,100 Lbs Approx. | Low Speed Shaft Dia. | 5.000 | ||
| Assembly | 19 | Centers | 14.250 | Shaft Height | 14.50 Inches |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 1.822:1 | 950 RPM | 1499 HP | 213 HP |
| 1430 RPM | 780 RPM | 1302 HP | 282 HP | |
| 1170 RPM | 640 RPM | 1131 HP | 360 HP | |
| 870 RPM | 470 RPM | 853 HP | 482 HP | |
| 720 RPM | 390 RPM | 709 HP | 580 HP | |
| 580 RPM | 320 RPM | 569 HP | Exceeds Mechanical HP |
| Condition |
|---|
|
Notes: Very good used surplus |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
