- Speed Reducer Data Sheet -
HOME
N A M E P L A T E       D A T A
Manufacturer:      FALK RAM Right Angle Mixer Drive Our ID No.      008022
Model:      500MDX3AZ
Ratio:      47.21
MO# or S/N      95-031960-01 Alt. S/N
IP Speed      1750 HP rating      20 Cat. Rating
OP Speed:      37 SF / SC      1.0
Date      06-95 Oil Capacity      12.0
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating      35,535 Lb-Inches Shaft Diameters High Speed:  1.750
Low Speed:  4.250
Weight      1050 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
47.21:1

37.1 RPM
20.9 HP
1430 RPM
30.3 RPM
18.0 HP
1170 RPM
24.8 RPM
15.5 HP
870 RPM
18.4 RPM
12.4 HP
720 RPM
15.3 RPM
10.8 HP
580 RPM
12.3 RPM
9.15 HP
Notes:
Condition: Rebuilt


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

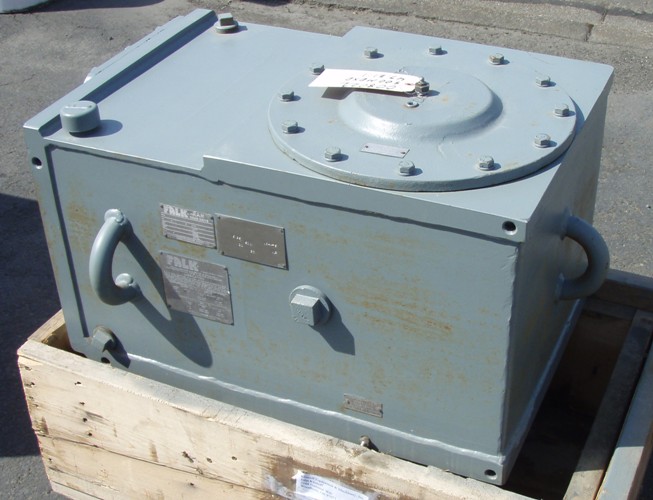

Click on images for larger view.
