Klistoff Equipment & Machinery, Inc. - Speed Reducer Data Sheet - |
|||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|||||||||||||||||||||||||||||||||||
Manufacturer: | FALK | Our ID No. | 008213 | ||||||||||||||||||||||||||||||||
Model: |
395A1A 395A1C Same dimensions as a 2090Y1 HSS is 3.000 instead of 2.750 |
Ratio: | 2.818:1 | ||||||||||||||||||||||||||||||||
MO# or S/N | 90140-00708 | Alt. S/N | |||||||||||||||||||||||||||||||||
IP Speed | 1750 | HP rating | 800 | Cat. Rating | |||||||||||||||||||||||||||||||
OP Speed: | 621 | SF / SC | 1.62 | ||||||||||||||||||||||||||||||||
Date | 2/90 | Oil Capacity | 11.8 | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Torque Rating | 131,000 Lb-Inches | Shaft Diameters |
High Speed:
3.000 Low Speed: 4.500 |
||||||||||||||||||||||||||||||||
Weight | 1,800 Lbs Approx. | Assembly | 19 | ||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||
Notes: |
Condition: Appears to be Unused Surplus |
||||||||||||||||||||||||||||||||||
|

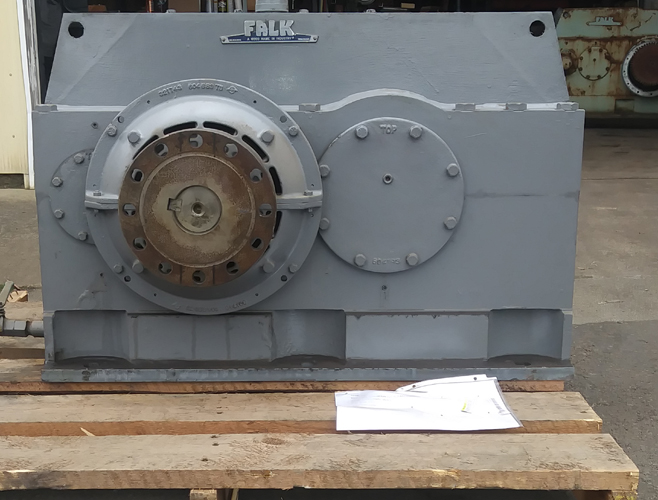

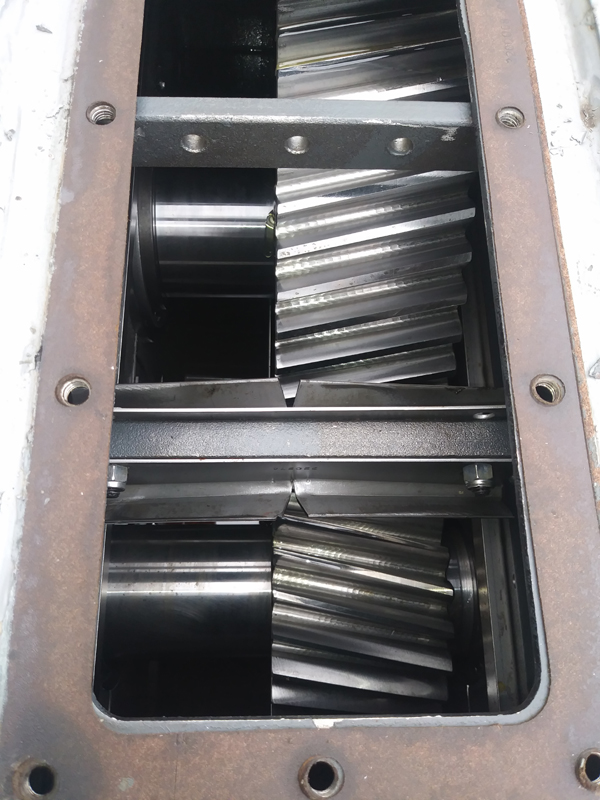

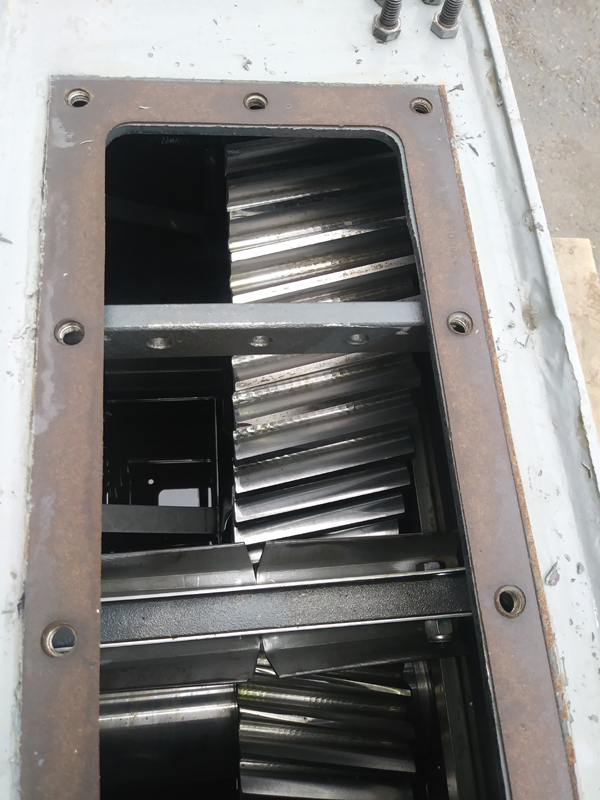

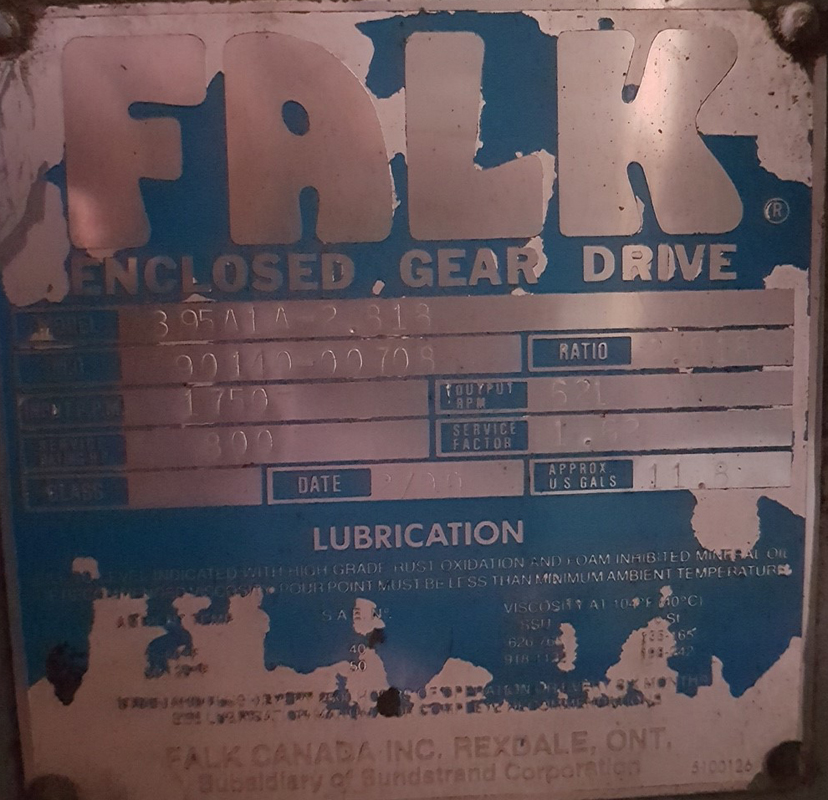

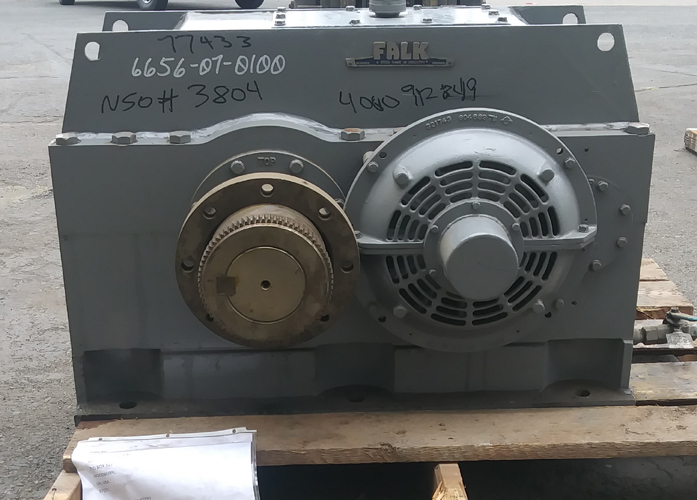

Click on images for larger view. |
