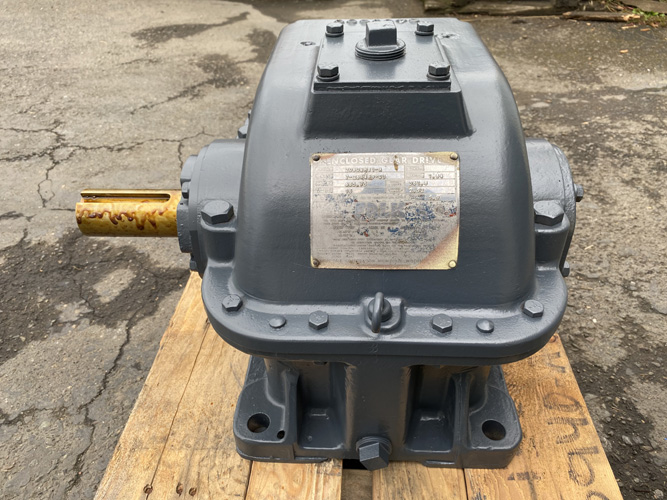

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008284 | ||
| Model: | 2060GHB1-A | Ratio: | 1.840:1 | ||
| MO# or S/N | 7-264469-01 | Alt. S/N | |||
| IP Speed: | 665.75 | HP rating: | 16 | Cat. Rating: | |
| OP Speed: | 361.8 | SF / SC | 2.92 | ||
| Date: | Oil Capacity: | 1.9 Approx US Gals | |||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 12,900 Lb-Inches | High Speed Shaft Dia. | 1.750 | ||
| Weight | 240 Lbs Approx. | Low Speed Shaft Dia. | 2.000 | ||
| Assembly | 54 | "O" Dimension | 17.44 | Shaft Height | 6.00 |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 1.840:1 | 950 RPM | 195 HP | 39.9 HP |
| 1430 RPM | 780 RPM | 159 HP | 49.3 HP | |
| 1170 RPM | 640 RPM | 130 HP | 63.7 HP | |
| 870 RPM | 470 RPM | 96.8 HP | 88.3 HP | |
| 720 RPM | 390 RPM | 80.1 HP | Exceeds Mechanical HP | |
| 580 RPM | 320 RPM | 64.6 HP | Exceeds Mechanical HP |
| Condition |
|---|
|
Notes: Very Good Condition, whew doggy look at them gears! |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
