- Speed Reducer Data Sheet -

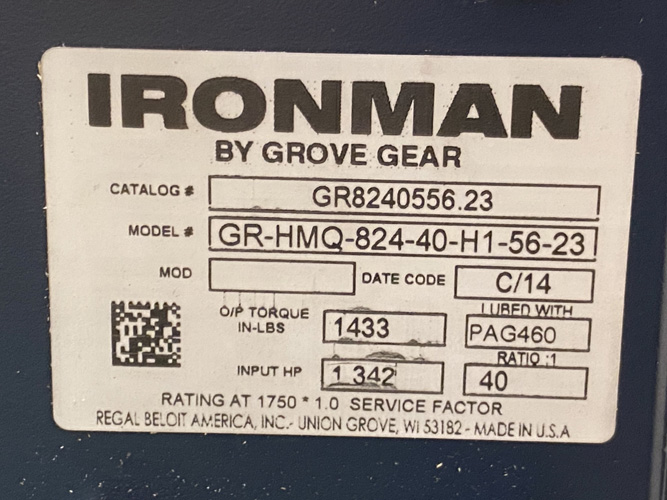

N A M E P L A T E       D A T A
Manufacturer:      GROVE GEAR     IRONMAN Our ID No.      008365
Model No:      GR-HMQ-824-40-H1-56-23 Ratio:      40
S/N      GR8240556.23 Center Distance      2.38
IP Speed      1750 HP rating      1.342
OP Speed:      43.8 SF / SC      1.0 - SF
A D D I T I O N A L       C A T A L O G       I N F O R M A T I O N
Torque Rating      1433 Lb-Inches Shaft Diameters High Speed:  5/8 (56C)
Low Speed:  1-7/16 Hollow
Weight      47 Lbs Approx. Assembly      H1
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
40

43.8 RPM
1.342 HP
1170 RPM
29.3 RPM
1.314 HP
870 RPM
RPM
HP
Notes:


Klistoff Equipment & Machinery, Inc.
PO Box 527
Woodburn, Oregon 97071


Tel: 1-503-982-0530
Fax: 1-503-981-3038

     Ask for:
John Klistoff
        or
Mark Ricci

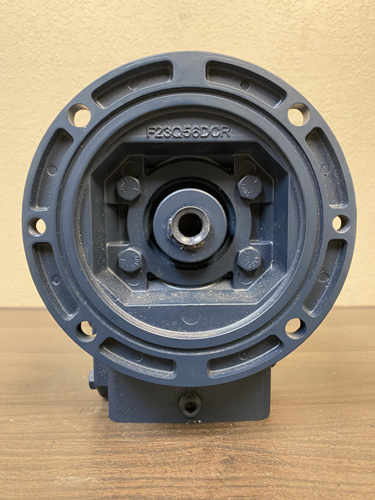

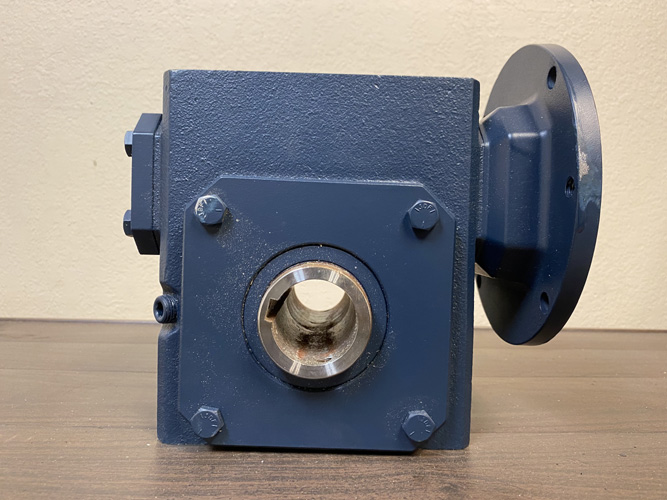

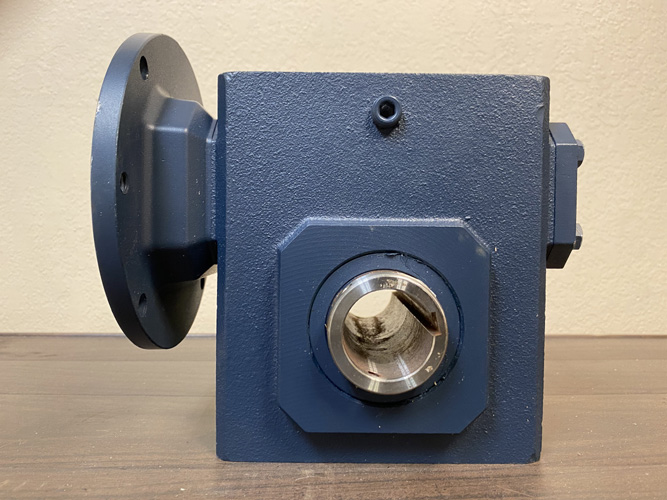

Click on images for larger view.
