- Speed Reducer Data Sheet -
HOME

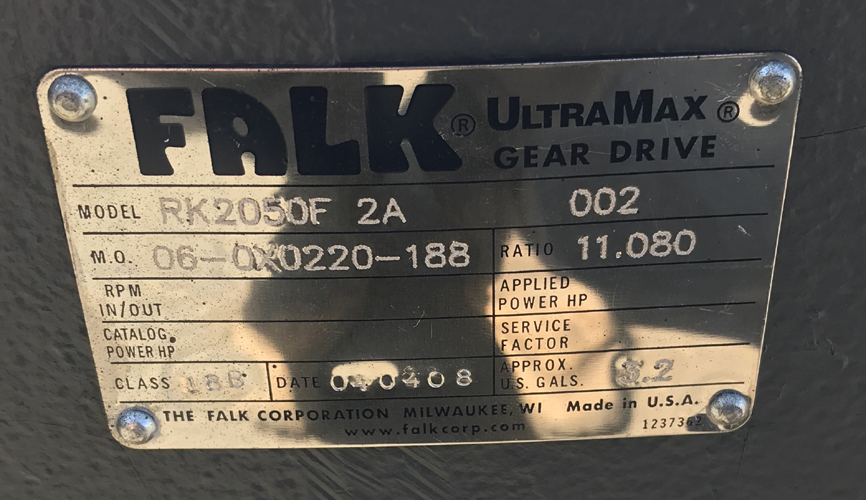

N A M E P L A T E       D A T A
Manufacturer:       FALK Our ID No.       008491
Model:       2050F2A
      RK2050F 2A
      2050FC2A
      2050FZ2A 		Ratio:       11.08
MO# or S/N       06-0X0220-188 Alt. S/N
IP Speed       1750 HP rating       63.2 Cat. Rating       63.2
OP Speed:       155 SF / SC       1.0
Date       Oil Capacity       3.2 GALS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       25,200 Lb-Inches Shaft Diameters High Speed:   1.6250
Low Speed:   2.5000
Weight       350 Lbs Approx. Assembly
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings
1750 RPM
11.08:1

155 RPM
63.2 HP
1430 RPM
125 RPM
51.9 HP
1170 RPM
100 RPM
42.6 HP
870 RPM
77 RPM
31.7 HP
720 RPM
62 RPM
26.3 HP
580 RPM
50 RPM
21.2 HP
Notes:
Condition:


Unused Surplus
