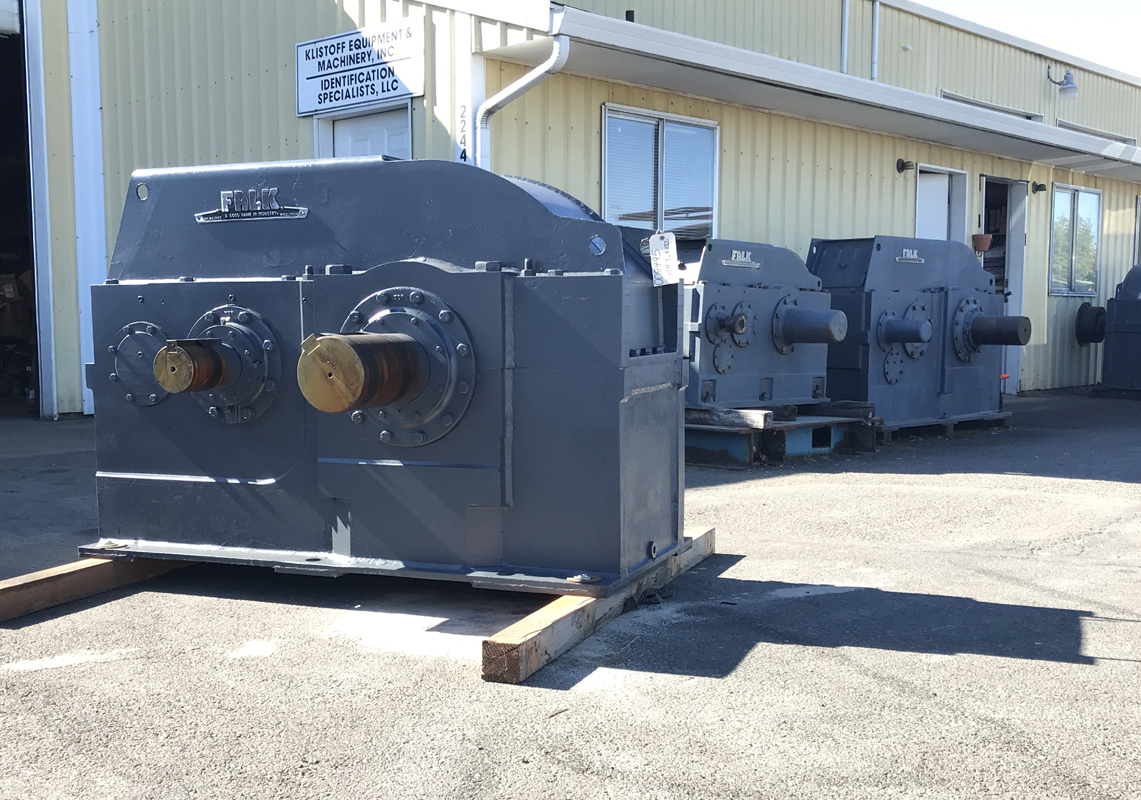

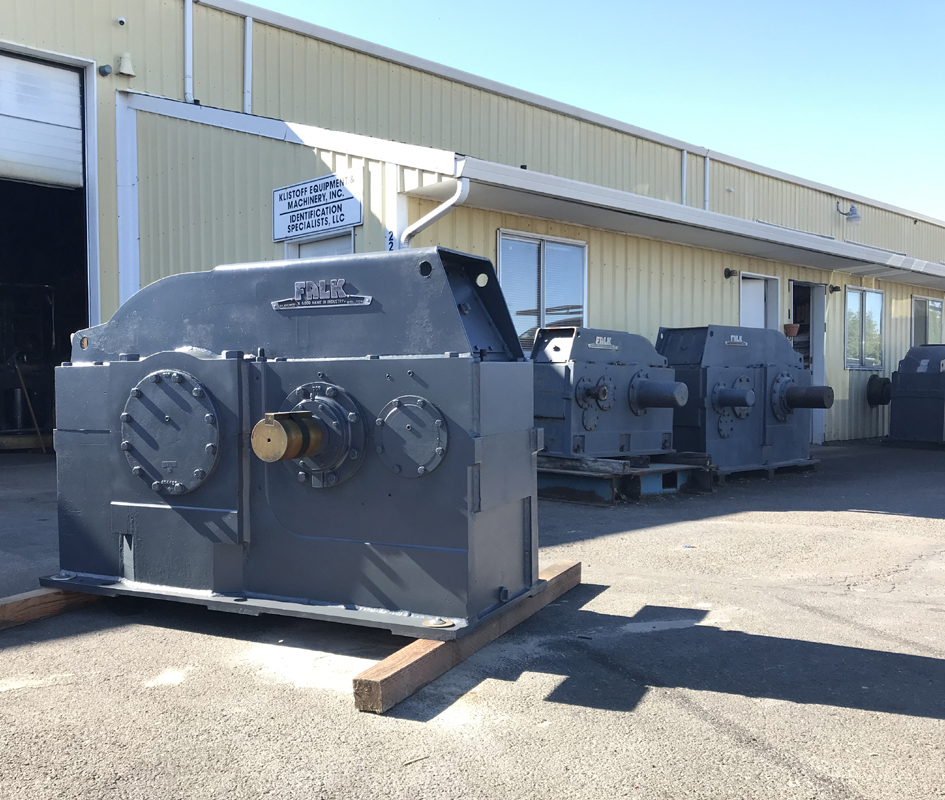

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008495 | ||
| Model: | 1140YF1 / 1145YF1 | Ratio: | 4.032 | ||
| MO# or S/N | 7-376453-02-3 | Alt. S/N | |||
| IP Speed: | 1170 | HP rating: | 1250 | Cat. Rating: | 1960 |
| OP Speed: | 290.18 | SF / SC | 1.52 SF | ||
| Date: | Oil Capacity: | 52 | |||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 316,000 Lb-Inches | High Speed Shaft Dia. | 5.000 | ||
| Weight | 8,500 Lbs Approx. | Low Speed Shaft Dia. | 7.250 | ||
| Assembly | 25 | Centers | 22.50 | Shaft Height | 22.5 |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 4.032:1 | 420 RPM | 2615 HP | 380 HP |
| 1430 RPM | 350 RPM | 2230 HP | 489 HP | |
| 1170 RPM | 280 RPM | 1960 HP | 573 HP | |
| 870 RPM | 215 RPM | 1493 HP | 650 HP | |
| 720 RPM | 175 RPM | 1282 HP | 687 HP | |
| 580 RPM | 140 RPM | 1070 HP | 716 HP |
| Condition |
|---|
|

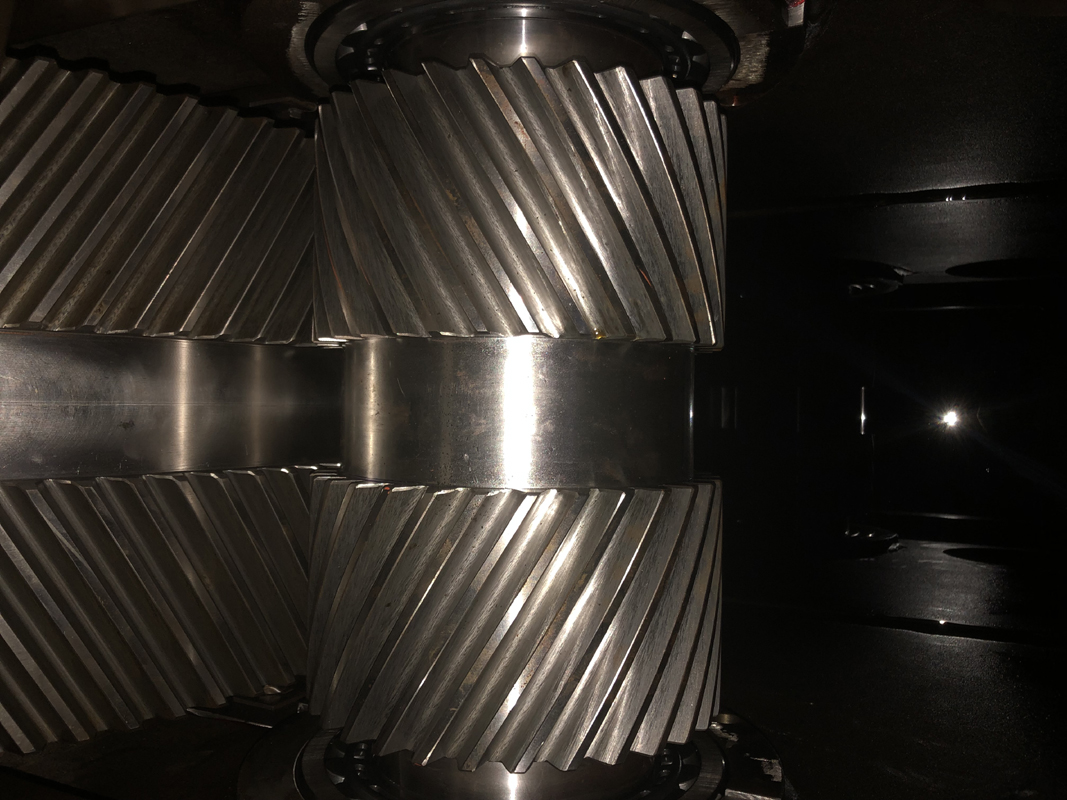

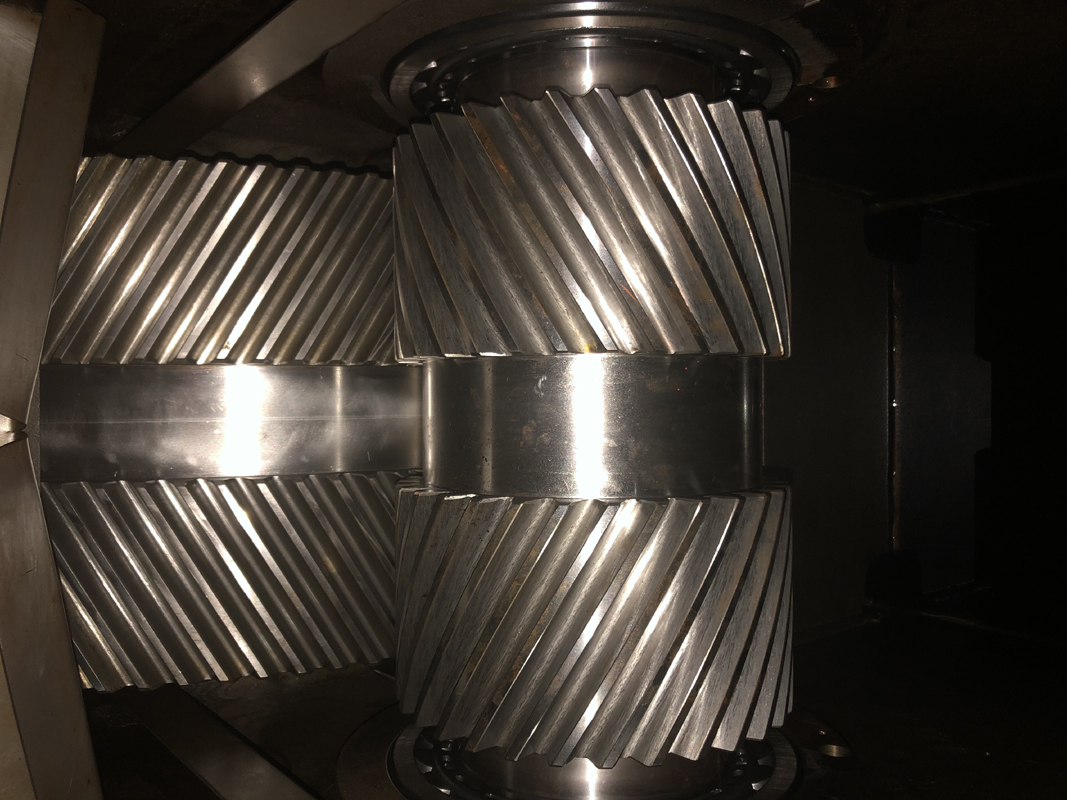

Notes: Gearing is in excellent condition, unit appears to be rebuilt |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
