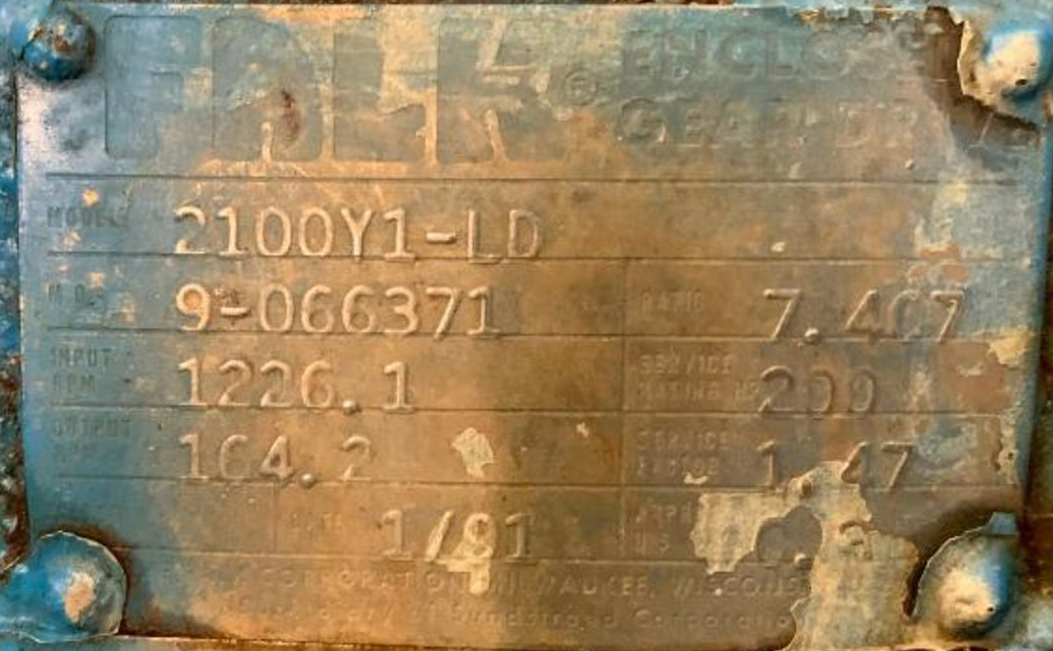

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008521 | ||
| Model: | 2100Y1-LD | Ratio: | 7.467:1 | ||
| MO# or S/N | 9-066371 | Alt. S/N | |||
| IP Speed: | 1226.1 | HP rating: | 200 | Cat. Rating: | |
| OP Speed: | 164.2 | SF / SC | 1.47 | ||
| Date: | 01/91 | Oil Capacity: | 6.8 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 111,000 Lb-Inches | HS Shaft Dia. | 3.000 | ||
| Weight | 2,800 Lbs Approx. | LS Shaft Dia. | 5.000 | ||
| Assembly | 2 | Shaft Centers | 14.25 | Shaft Height | 14.50 |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 7.467:1 | 230 RPM | 414 HP | 306 HP |
| 1430 RPM | 190 RPM | 350 HP | Exceeds Mechanical HP Rating | |
| 1170 RPM | 155 RPM | 295 HP | " | |
| 870 RPM | 115 RPM | 229 HP | " | |
| 720 RPM | 95 RPM | 194 HP | " | |
| 580 RPM | 77 RPM | 160 HP | " |
| Condition |
|---|
|

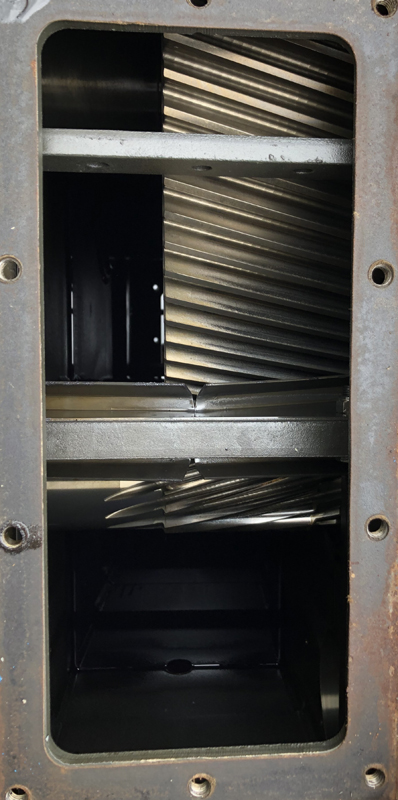

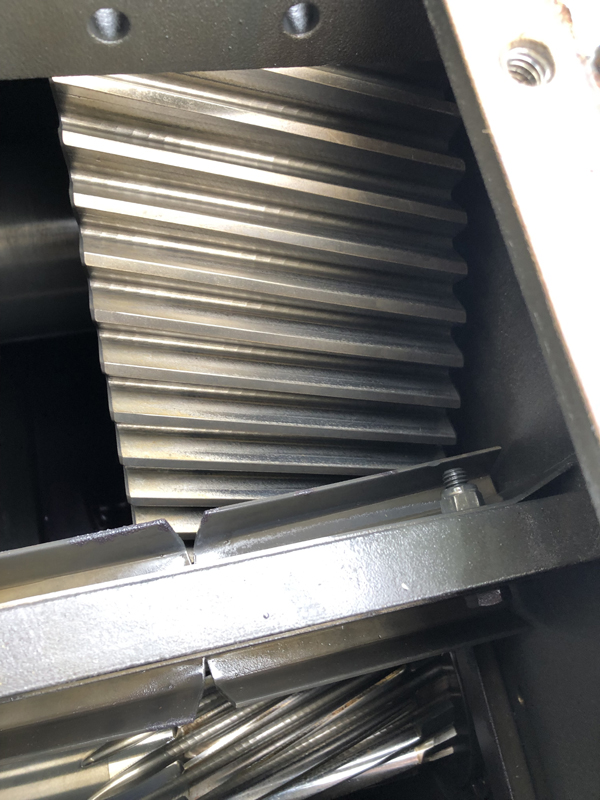

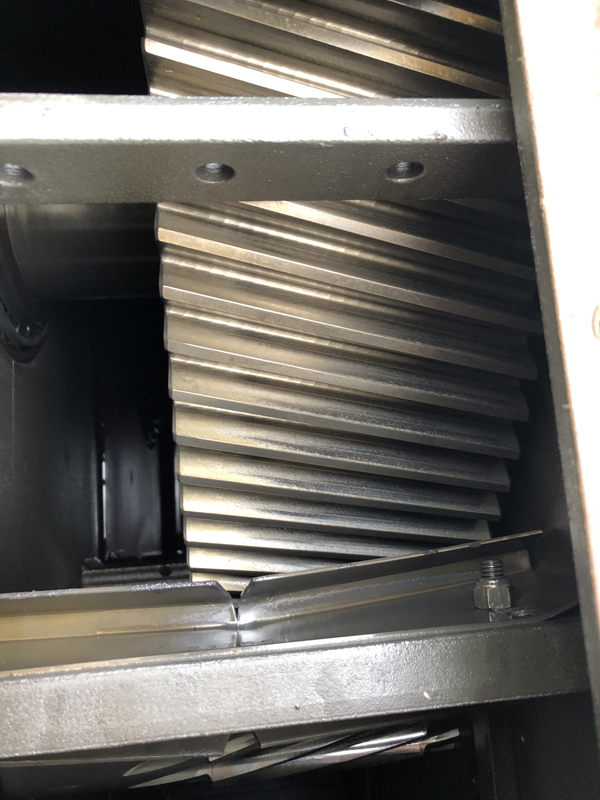

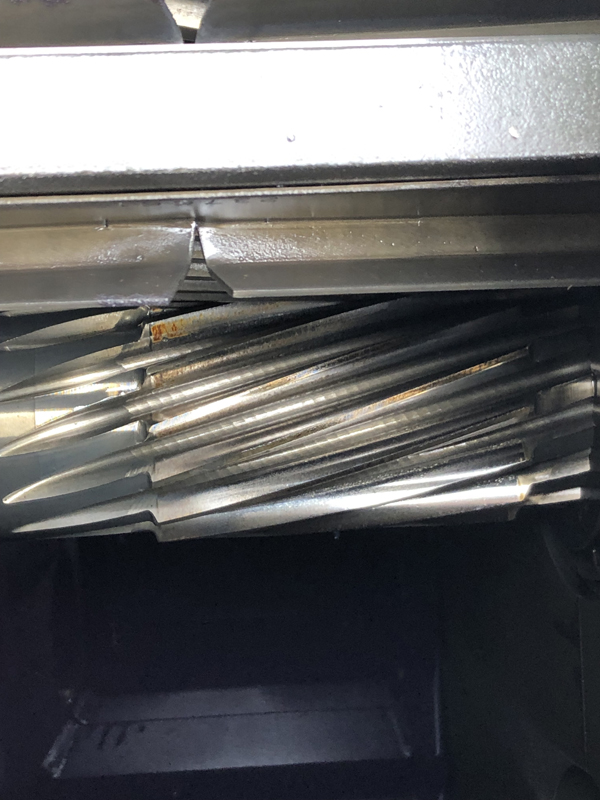

Notes: Used, Gears are in very good condition! Look how clean the oil troughs are! |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
