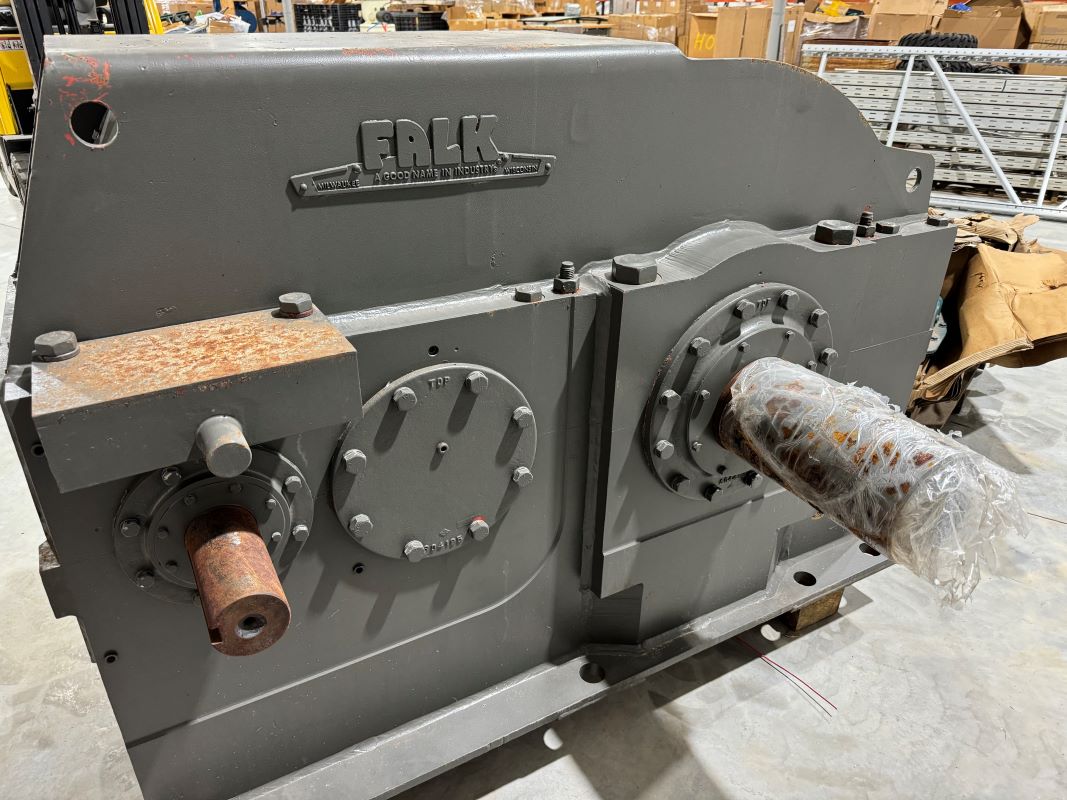

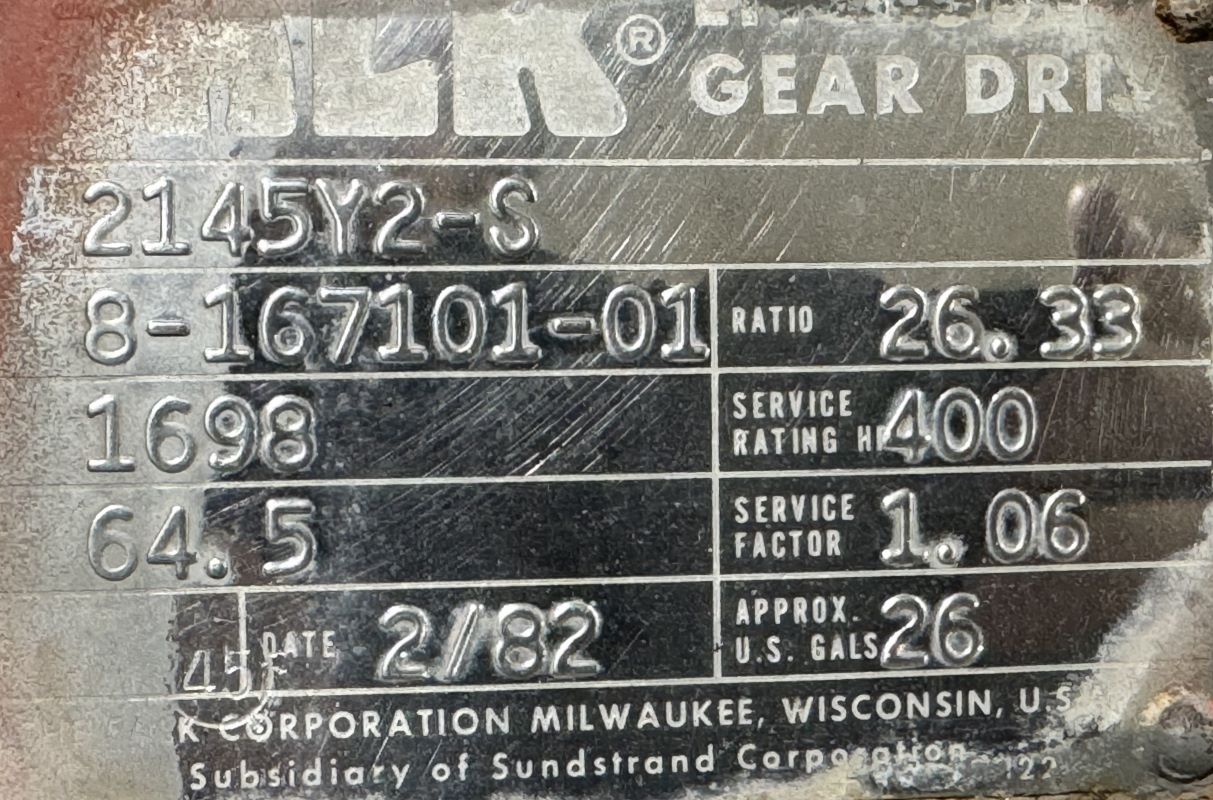

Nameplate Data | |||||
---|---|---|---|---|---|
Manufacturer: | FALK | Our ID No. | 008535 | ||
Model: | 2145Y2-S | Ratio: | 26.33 | ||
MO# or S/N | 8-167101-01 | Alt. S/N | |||
IP Speed: | 1750 | HP rating: | 400 | Cat. Rating: | 424 |
OP Speed: | 64.5 | SF / SC | 1.06 | ||
Date: | 2-82 | Oil Capacity: | 26 |
Additional Catalog Information | |||||
---|---|---|---|---|---|
Torque Rating | 501,000 Lb-Inches | High Speed Shaft Dia. | 3.500 | ||
Catalog Weight | 7,200 Lbs Approx. | Low Speed Shaft Dia. | 7.250 | ||
Assembly | 25 | Centers | 35.000 | Shaft Height | 22.50 Inches |
H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
---|---|---|---|---|
1750 RPM | 26.33:1 | 68 RPM | 489 HP | 292 HP |
1430 RPM | 56 RPM | 407 HP | 394 HP | |
1170 RPM | 45 RPM | 342 HP | Exceeds Mechanical HP | |
870 RPM | 34 RPM | 261 HP | Exceeds Mechanical HP | |
720 RPM | 28 RPM | 221 HP | Exceeds Mechanical HP | |
580 RPM | 22 RPM | 181 HP | Exceeds Mechanical HP |

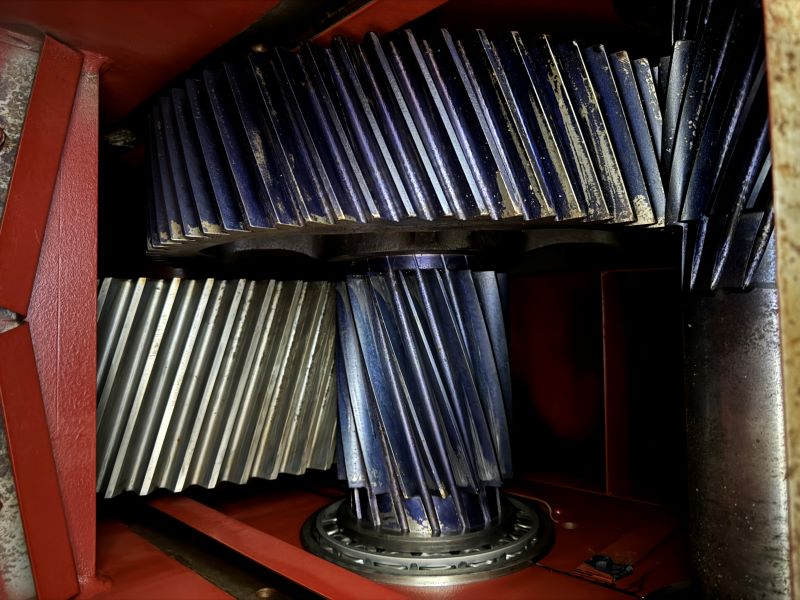

Condition |
---|
Notes: Very Good. Looks like Unused surplus. |
Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
