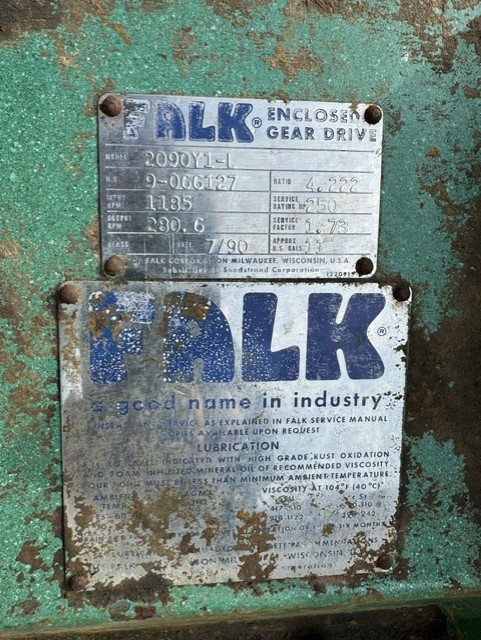

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008537 | ||
| Model: | 2090Y1-L | Ratio: | 4.222 | ||
| MO# or S/N | 9-066127 | Alt. S/N | |||
| IP Speed: | 1185 | HP rating: | 250 | Cat. Rating: | 432 |
| OP Speed: | 280.6 | SF / SC | 1.73 | ||
| Date: | 7/90 | Oil Capacity: | 11 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 94,100 Lb-Inches | High Speed Shaft Dia. | 2.750 | ||
| Catalog Weight | 1,800 Lbs Approx. | Low Speed Shaft Dia. | 4.500 | ||
| Assembly | 19 | Centers | 12.500 | Shaft Height | 13.00 Inches |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 4.222 | 420 RPM | 583 HP | 235 HP |
| 1430 RPM | 350 RPM | 506 HP | 266 HP | |
| 1170 RPM | 280 RPM | 432 HP | 327 HP | |
| 870 RPM | 210 RPM | 336 HP | Exceeds Mechanical HP | |
| 720 RPM | RPM | HP | HP | |
| 580 RPM | RPM | HP | HP |
| Condition |
|---|
|

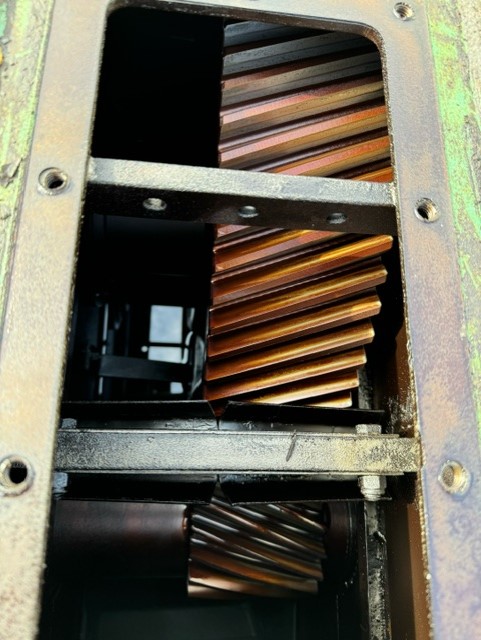

Notes: Used gears are good. |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
