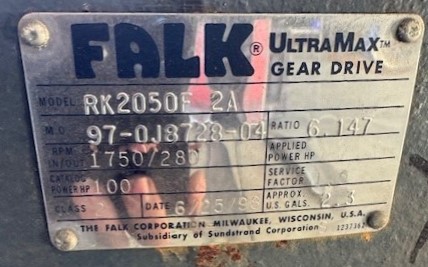

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | |||
| Model: | RK2050F 2A 2050FC2A 2050FZ2A | Ratio: | 6.147 | ||
| MO# or S/N | 97-0J8728-04 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | Cat. Rating: | 100 | |
| OP Speed: | 280 | SF / SC | |||
| Date: | 6/25/98 | Oil Capacity: | 3.2 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 22,100 Lb-Inches | High Speed Shaft Dia. | 1.625 | ||
| Weight | 400 Lbs Approx. | Low Speed Shaft Dia. | 2.500 | ||
| Shaft Height | 9.60 | C Dimension | 21.54 | ||
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling fan |
|---|---|---|---|---|
| 1750 RPM | 6.147:1 | 280 RPM | 100 HP | 50.0 HP |
| 1430 RPM | 230 RPM | 86.8 HP | 51.8 HP | |
| 1170 RPM | 190 RPM | 73.3 HP | 54.6 HP | |
| 870 RPM | 140 RPM | 55.6 HP | 55.9 HP | |
| 720 RPM | 115 RPM | 46.3 HP | 55.4 HP | |
| 580 RPM | 95 RPM | 37.3 HP | 54.1 HP |

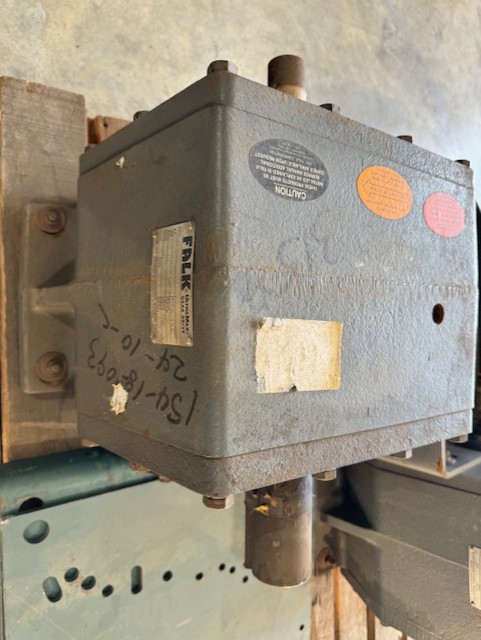

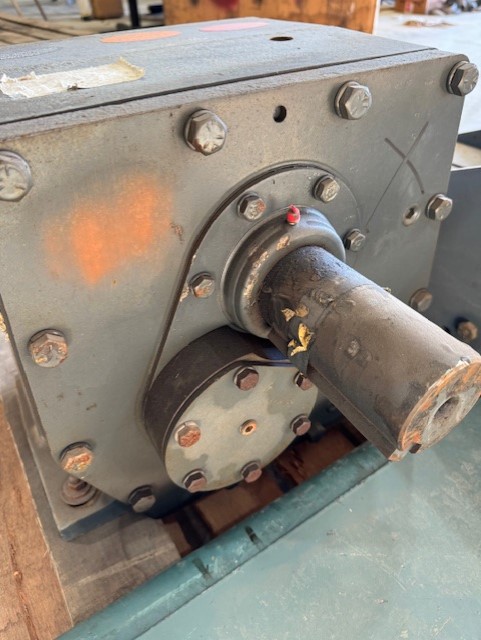

| Condition |
|---|
|
Notes: USED - Unit has a backstop |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
