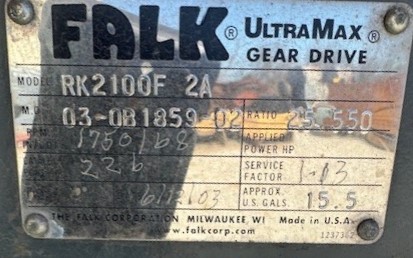

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008543 | ||
| Model: | 2100FC2AA | Ratio: | 25.55 | ||
| MO# or S/N | 03-0B1859-02 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 226 | Cat. Rating: | |
| OP Speed: | 68 | SF / SC | 1.13 | ||
| Date: | 6/12/03 s | Oil Capacity: | 15.5 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 208,000 Lb-Inches | High Speed Shaft Dia. | 2.750 | ||
| Weight | 1,500 Lbs Approx. | Low Speed Shaft Dia. | 4.500 | ||
| Shaft Height | 17.40 | C - Dimension | 38.50 Shaft end to Shaft end | ||
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W cooling fan |
|---|---|---|---|---|
| 1750 RPM | 25.55:1 | 68 RPM | 226 HP | Exceeds Mechanical HP |
| 1430 RPM | 56 RPM | 186 HP | Exceeds Mechanical HP | |
| 1170 RPM | 45 RPM | 152 HP | Exceeds Mechanical HP | |
| 870 RPM | 34 RPM | 114 HP | Exceeds Mechanical HP | |
| 720 RPM | 28 RPM | 94.1 HP | Exceeds Mechanical HP | |
| 580 RPM | 22 RPM | 75.9 HP | Exceeds Mechanical HP |
| Condition |
|---|
|

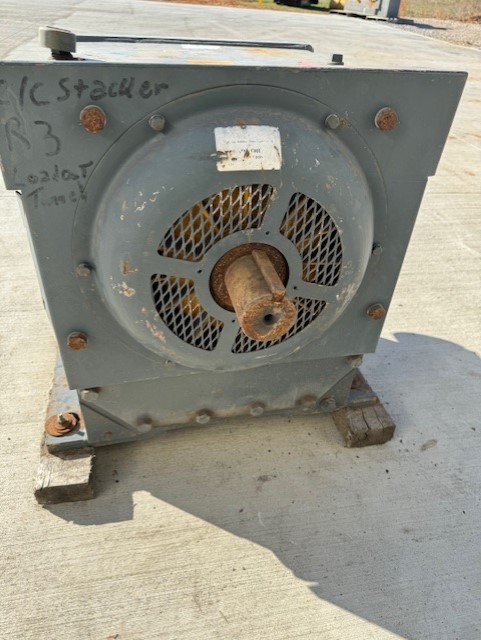

Notes: Unused surplus, weathered |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
