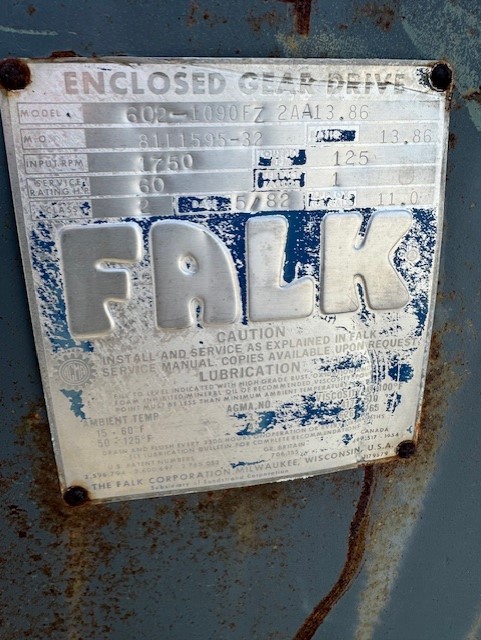

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008557 | ||
| Model: | 602-1090FZ2AA 1090FZ2A 1090FC2A | Ratio: | 13.86 | ||
| MO# or S/N | 81L1595-32 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 60 | Cat. Rating: | |
| OP Speed: | 125 | SF / SC | II | ||
| Date: | 5/82 | Oil Capacity: | 11.0 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | Lb-Inches | High Speed Shaft Dia. | 2.500 | ||
| Weight | 1,000 Lbs Approx. | Low Speed Shaft Dia. | 4.000 | ||
| Shaft Height | 15.74 | C - Dimension | 35.08 Shaft end to Shaft end | ||
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W cooling fan |
|---|---|---|---|---|
| 1750 RPM | 13.86:1 | 125 RPM | 178 HP | 111 HP |
| 1430 RPM | 100 RPM | 147 HP | 114 HP | |
| 1170 RPM | 84 RPM | 121 HP | 121 HP | |
| 870 RPM | 62 RPM | 91.3 HP | Exceeds Mechanical HP | |
| 720 RPM | 50 RPM | 76.1 HP | Exceeds Mechanical HP | |
| 580 RPM | 42 RPM | 61.8 HP | Exceeds Mechanical HP |
| Condition |
|---|
|
Notes: USED - has a backstop |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
