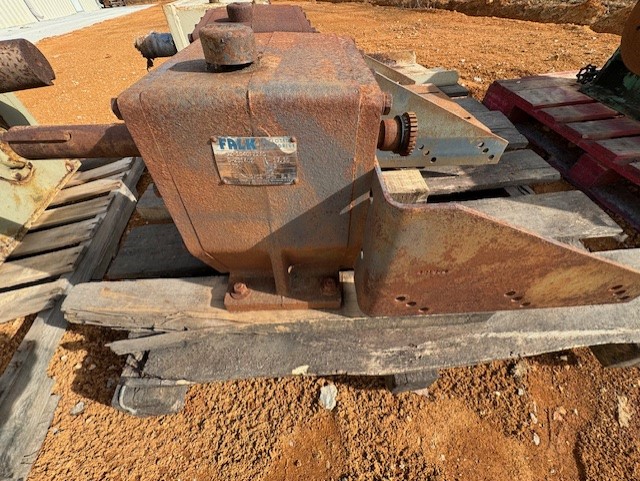

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008566 | ||
| Model: | 1040FZ2AS 52-1040FZ2AS | Ratio: | 17.10 | ||
| MO# or S/N | 8-231402 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 5 | Cat. Rating: | 12.6 |
| OP Speed: | 100 | SF / SC | 2 | ||
| Date: | Oil Capacity: | 2.2 | |||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 7,750 Lb-Inches | High Speed Shaft Dia. | 1.375 | ||
| Weight | 250 Lbs Approx. | Low Speed Shaft Dia. | 2.000 | ||
| Shaft Height | 8.5 | C Dimension | LONGER THEN STANDARD | ||
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
|---|---|---|---|
| 1750 RPM | 17.10:1 | 100 RPM | 12.6 HP |
| 1430 RPM | 84 RPM | 10.8 HP | |
| 1170 RPM | 68 RPM | 8.89 HP | |
| 870 RPM | 50 RPM | 6.66 HP | |
| 720 RPM | 42 RPM | 5.54 HP | |
| 580 RPM | 34 RPM | 4.48 HP |
| Condition |
|---|
|
Notes: USED |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
