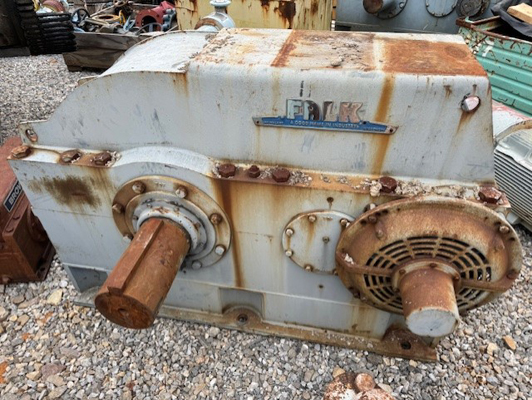

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008584 | ||
| Model: | 2130Y2-LR | Ratio: | 25.40 | ||
| MO# or S/N | 8-765578 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 300 | Cat. Rating: | 389 |
| OP Speed: | 68.9 | SF / SC | 1.30 | ||
| Date: | 3/87 | Oil Capacity: | 18 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 356,000 Lb-Inches | High Speed Shaft Dia. | 3.250 | ||
| Catalog Weight | 5,000 Lbs Approx. | Low Speed Shaft Dia. | 6.500 | ||
| Assembly | 2 | Centers | 31.000 | Shaft Height | 20.00 Inches |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 25.40 | 68 RPM | 389 HP | Exceeds Mechanical HP |
| 1430 RPM | 56 RPM | 326 HP | Exceeds Mechanical HP | |
| 1170 RPM | 45 RPM | 272 HP | Exceeds Mechanical HP | |
| 870 RPM | 209 RPM | 34 HP | Exceeds Mechanical HP | |
| 720 RPM | 28 RPM | 176 HP | Exceeds Mechanical HP | |
| 580 RPM | 22 RPM | 144 HP | Exceeds Mechanical HP |

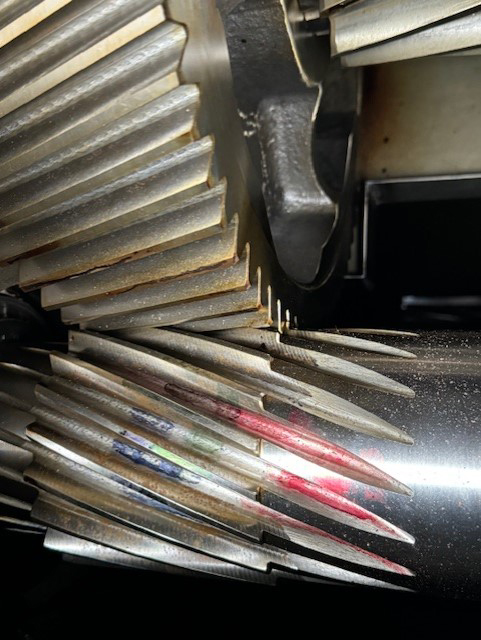

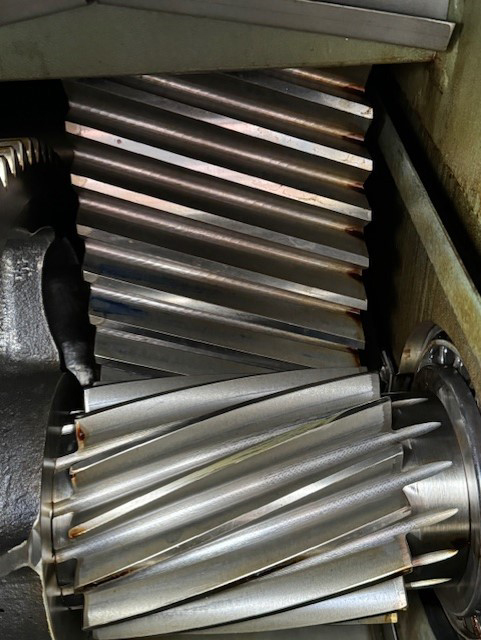

| Condition |
|---|
|
Notes: Used, Good |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
