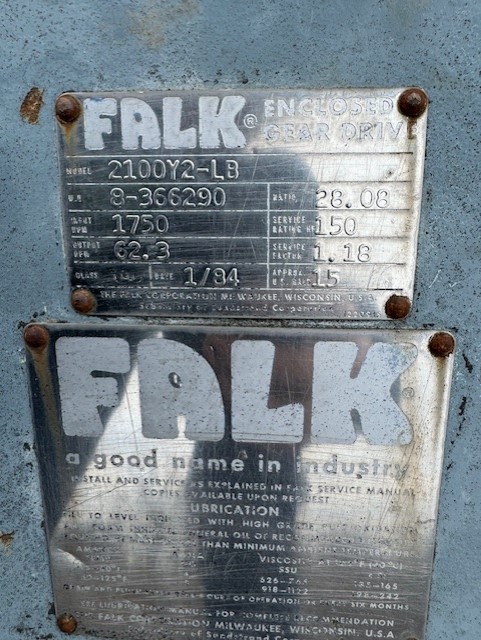

Nameplate Data | |||||
---|---|---|---|---|---|
Manufacturer: | FALK | Our ID No. | 008600 | ||
Model: | 2100Y2-LB | Ratio: | 28.08 | ||
MO# or S/N | 8-366290 | Alt. S/N | |||
IP Speed: | 1750 | HP rating: | 150 | Cat. Rating: | 177 |
OP Speed: | 62.3 | SF / SC | 1.18 | ||
Date: | 1/84 | Oil Capacity: | 15 |
Additional Catalog Information | |||||
---|---|---|---|---|---|
Torque Rating | 179,000 Lb-Inches | High Speed Shaft Dia. | 2.500 | ||
Catalog Weight | 2,200 Lbs Approx. | Low Speed Shaft Dia. | 5.000 | ||
Assembly | 19 | Centers | 22.750 | Shaft Height | 14.50 Inches |
H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W one cooling fan |
---|---|---|---|---|
1750 RPM | 28.08 | 60 RPM | 179 HP | Exceeds Mechanical HP |
1430 RPM | 50 RPM | 149 HP | Exceeds Mechanical HP | |
1170 RPM | 40 RPM | 124 HP | Exceeds Mechanical HP | |
870 RPM | 31 RPM | 94.5 HP | Exceeds Mechanical HP | |
720 RPM | 25 RPM | 78.8 HP | Exceeds Mechanical HP | |
580 RPM | 21 RPM | 63.9 HP | Exceeds Mechanical HP |
Condition |
---|

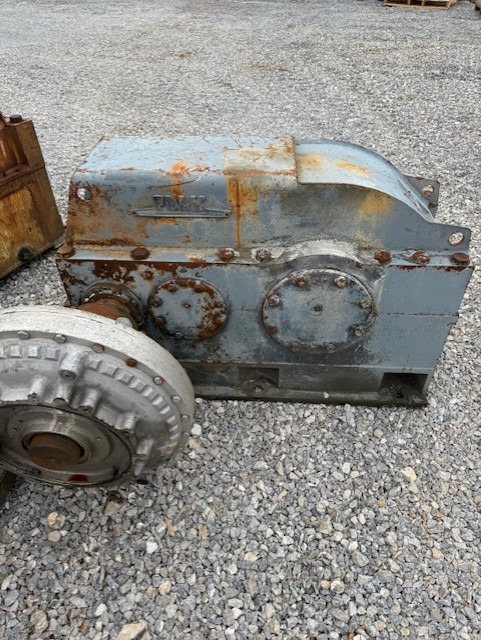

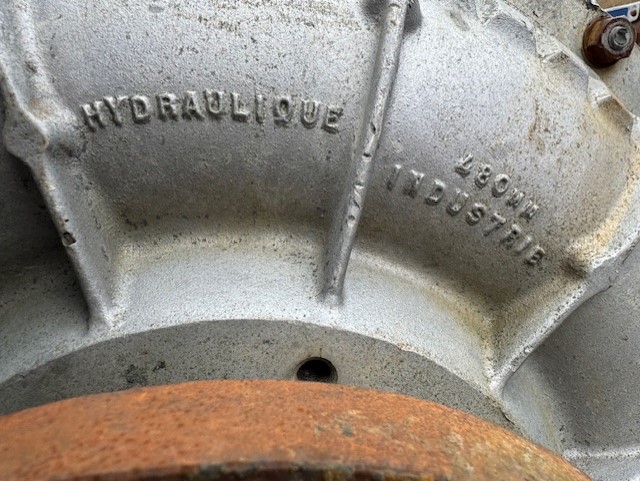

Notes: Used, W/ Hydraulique 480 Fluid Coupling |
Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
