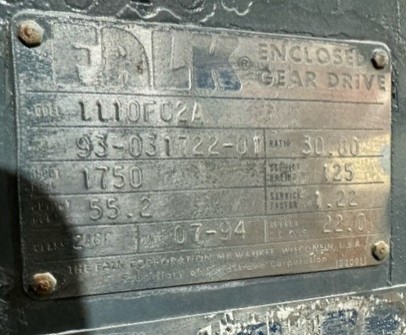

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008639 | ||
| Model: | 1110FC2A 1110FC2AB | Ratio: | 30.80 | ||
| MO# or S/N | 93-031722-01 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 125 | Cat. Rating: | 152 |
| OP Speed: | 55.2 | SF / SC | 1.22 | ||
| Date: | 07/94 | Oil Capacity: | 22.0 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 169,000 Lb-Inches | High Speed Shaft Dia. | 3.000 | ||
| Weight | 1,700 Lbs Approx. | Low Speed Shaft Dia. | 4.750 | ||
| Shaft Height | 19.50 | C - Dimension | 42.02 Shaft end to Shaft end | ||
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W cooling fan |
|---|---|---|---|---|
| 1750 RPM | 30.80:1 | 56 RPM | 152 HP | Exceeds Mechanical HP |
| 1430 RPM | 45 RPM | 126 HP | Exceeds Mechanical HP | |
| 1170 RPM | 37 RPM | 103 HP | Exceeds Mechanical HP | |
| 870 RPM | 28 RPM | 77.6 HP | Exceeds Mechanical HP | |
| 720 RPM | 22 RPM | 64.6 HP | Exceeds Mechanical HP | |
| 580 RPM | 18 RPM | 52.3 HP | Exceeds Mechanical HP |
| Condition |
|---|
|
Notes: |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
