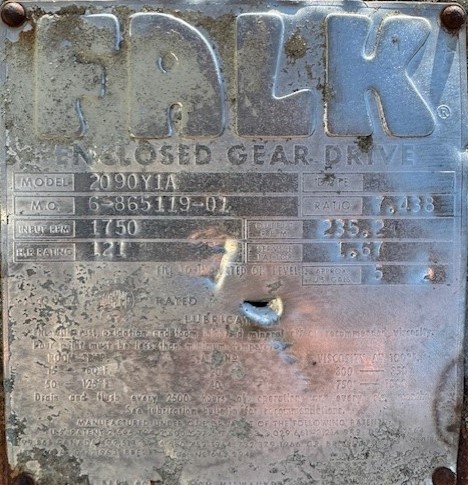

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008651 | ||
| Model: | 2090Y1A | Ratio: | 7.438 | ||
| MO# or S/N | 6-862119-01 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 121 | Cat. Rating: | 203 |
| OP Speed: | 235.2 | SF / SC | 1.67 | ||
| Date: | Oil Capacity: | ||||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 54,600 Lb-Inches | High Speed Shaft Dia. | 2.750 | ||
| Catalog Weight | 1,800 Lbs Approx. | Low Speed Shaft Dia. | 4.500 | ||
| Assembly | 24 | Centers | 12.500 | Shaft Height | 13.00 Inches |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
|---|---|---|---|
| 1750 RPM | 7.438:1 | 230 RPM | 203 HP |
| 1430 RPM | 190 RPM | 172 HP | |
| 1170 RPM | 155 RPM | 144 HP | |
| 870 RPM | 115 RPM | 112 HP | |
| 720 RPM | 95 RPM | 94.8 HP | |
| 580 RPM | 77 RPM | 78.1 HP |
| Condition |
|---|
|

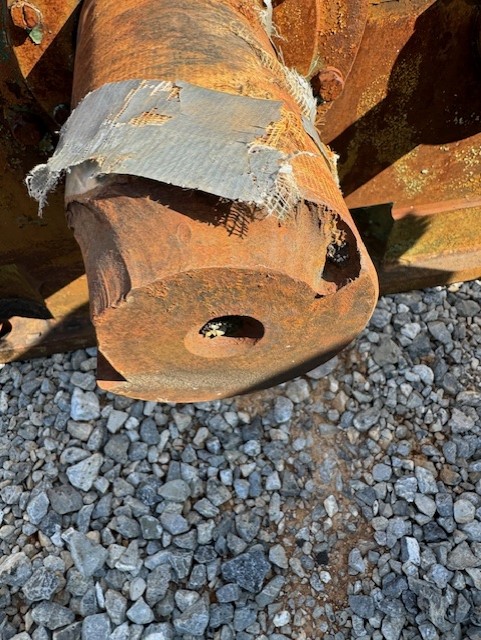

Notes: Used - Low speed shaft is damaged |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
