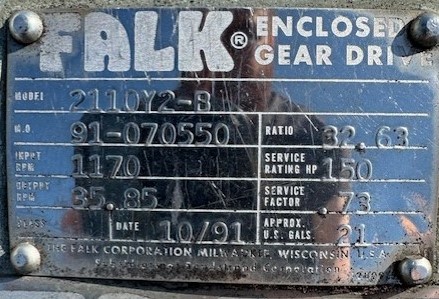

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008652 | ||
| Model: | 2110Y2B | Ratio: | 32.63 | ||
| MO# or S/N | 91-070550 | Alt. S/N | |||
| IP Speed: | 1170 | HP rating: | 150 | Cat. Rating: | |
| OP Speed: | 35.85 | SF / SC | .73 | ||
| Date: | 10/91 | Oil Capacity: | 21 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 187,000 Lb-Inches | High Speed Shaft Dia. | 2.750 | ||
| Catalog Weight | 2,800 Lbs Approx. | Low Speed Shaft Dia. | 5.500 | ||
| Assembly | 24 | Centers | 24.500 | Shaft Height | 16.25 Inches |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
|---|---|---|---|
| 1750 RPM | 32.63:1 | 56 RPM | 159 HP |
| 1430 RPM | 45 RPM | 132 HP | |
| 1170 RPM | 37 RPM | 110 HP | |
| 870 RPM | 28 RPM | 83.9 HP | |
| 720 RPM | 22 RPM | 70.0 HP | |
| 580 RPM | 18 RPM | 57.4 HP |
| Condition |
|---|
|

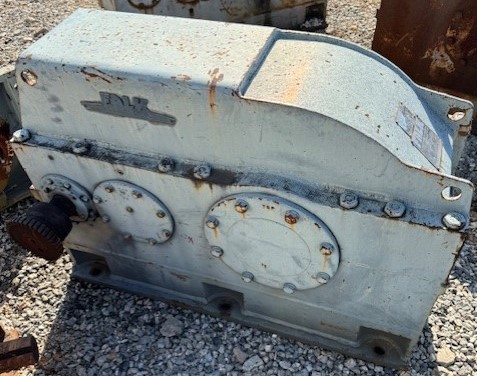

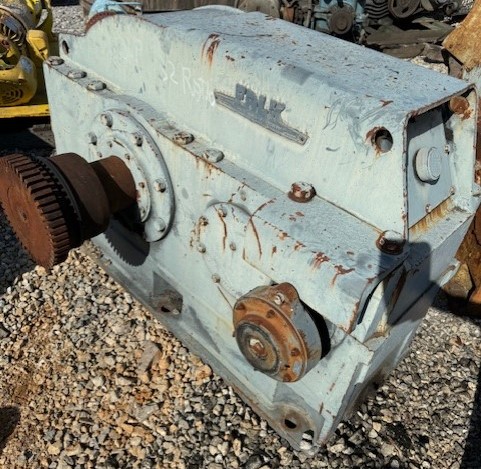

Notes: Used - with backstop |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
