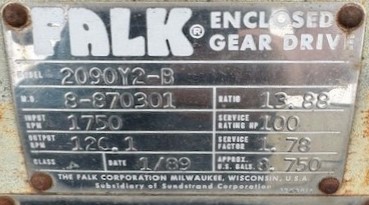

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008664 | ||
| Model: | 2090Y2B | Ratio: | 13.88 | ||
| MO# or S/N | 8-870301 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 100 | Cat. Rating: | 178 |
| OP Speed: | 126.1 | SF / SC | 1.78 | ||
| Date: | 1/89 | Oil Capacity: | 8.75 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 88,900 Lb-Inches | High Speed Shaft Dia. | 2.250 | ||
| Catalog Weight | 1,800 Lbs Approx. | Low Speed Shaft Dia. | 4.500 | ||
| Assembly | 8 | Centers | 20.000 | Shaft Height | 13.00 Inches |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 13.88 | 125 RPM | 178 HP | 97 HP |
| 1430 RPM | 100 RPM | 153 HP | 128 HP | |
| 1170 RPM | 84 RPM | 129 HP | Exceeds Mechanical HP | |
| 870 RPM | 62 RPM | 98.0 HP | Exceeds Mechanical HP | |
| 720 RPM | 50 RPM | 83.2 HP | Exceeds Mechanical HP | |
| 580 RPM | 42 RPM | 67.8 HP | Exceeds Mechanical HP |

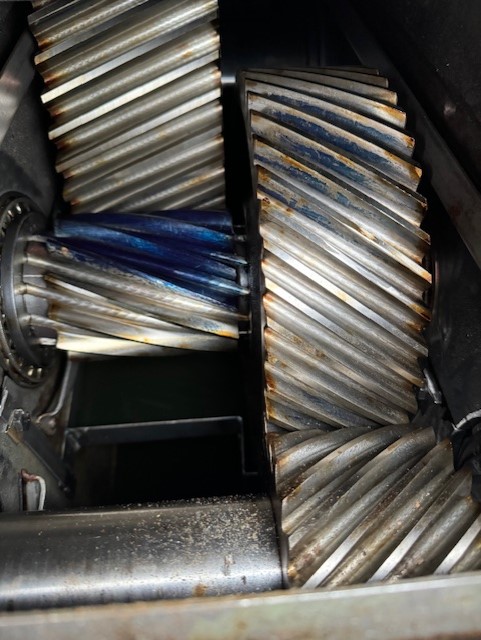

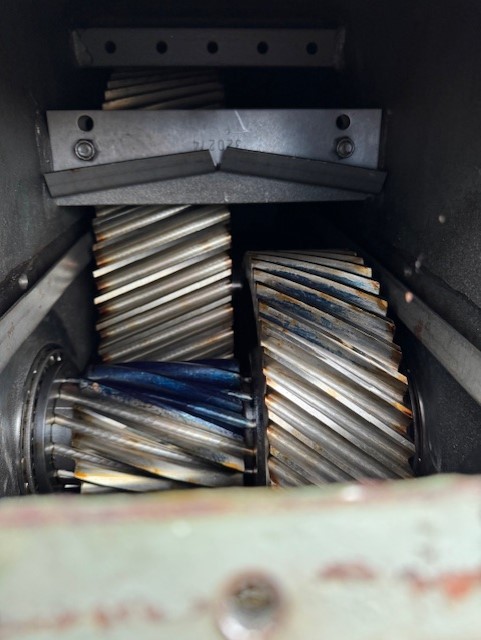

| Condition |
|---|
|
Notes: Used |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
