| Nameplate Data | |||||
|---|---|---|---|---|---|

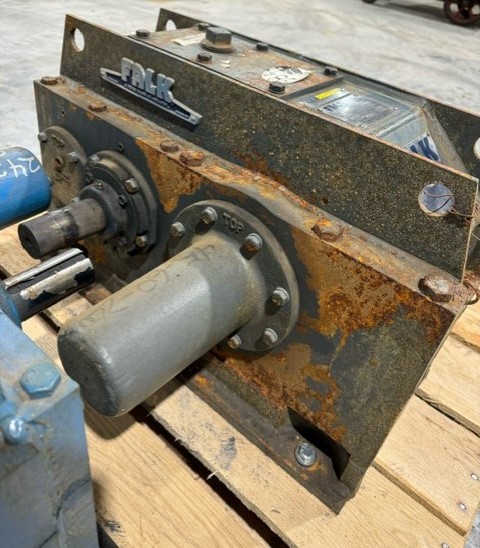

| Manufacturer: | FALK | Our ID No. | 008665 | ||
| Model: | 2050Y1-LD | Ratio: | 4.190 | ||
| MO# or S/N | 04-0R0876 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 100 | Cat. Rating: | 168 |
| OP Speed: | 417.7 | SF / SC | 1.68 | ||
| Date: | 9-04 | Oil Capacity: | 1.8 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 25,300 Lb-Inches | High Speed Shaft Dia. | 1.750 | ||
| Weight | 500 Lbs Approx. | Low Speed Shaft Dia. | 2.750 | ||
| Assembly | 2 | Centers | 7.500 | Shaft Height | 8.00 |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W cooling fan |
|---|---|---|---|---|
| 1750 RPM | 4.190:1 | 420 RPM | 168 HP | 112 HP |
| 1430 RPM | 350 RPM | 142 HP | 135 HP | |
| 1170 RPM | 280 RPM | 119 HP | 105 HP | |
| 870 RPM | 210 RPM | 92.4 HP | Exceeds Mechanical HP | |
| 720 RPM | 175 RPM | 78.2 HP | Exceeds Mechanical HP | |
| 580 RPM | 140 RPM | 64.5 HP | Exceeds Mechanical HP |
| Condition |
|---|
|
Notes: USED |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
