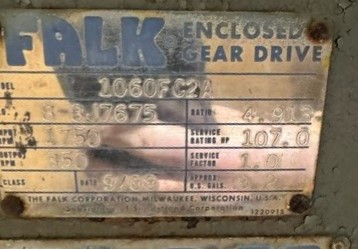

Nameplate Data | |||||
---|---|---|---|---|---|
Manufacturer: | FALK | Our ID No. | 008672 | ||
Model: | 1060FC2A 1060FZ2A | Ratio: | 4.913 | ||
MO# or S/N | 8-8J7675 | Alt. S/N | |||
IP Speed: | 1750 | HP rating: | 107.0 | Cat. Rating: | |
OP Speed: | 350 | SF / SC | 1.0 | ||
Date: | Oil Capacity: | 3.2 |
Additional Catalog Information | |||||
---|---|---|---|---|---|
Torque Rating | 18,900 Lb-Inches | High Speed Shaft Dia. | 1.875 | ||
Weight | 400 Lbs Approx. | Low Speed Shaft Dia. | 2.750 | ||
Shaft Height | 10.60 | C - Dimension | 24.94 Shaft end to Shaft end |
H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling fan |
---|---|---|---|---|
1750 RPM | 4.913:1 | 350 RPM | 107.0 HP | 62 HP |
1430 RPM | 280 RPM | 92.2 HP | 70 HP | |
1170 RPM | 230 RPM | 79.3 HP | 76 HP | |
870 RPM | 175 RPM | 63.5 HP | Exceeds Mechanical HP | |
720 RPM | 140 RPM | 55.1 HP | Exceeds Mechanical HP | |
580 RPM | 115 RPM | 46.8 HP | Exceeds Mechanical HP |
Condition |
---|
Notes: USED |
Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
