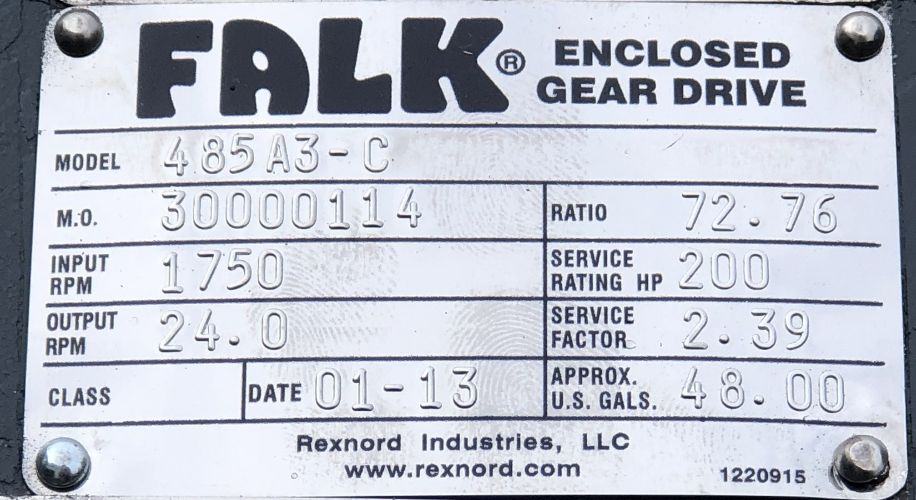

| Nameplate Data | |||||
|---|---|---|---|---|---|
| Manufacturer: | FALK | Our ID No. | 008996 | ||
| Model: | 485A3-C | Ratio: | 72.76 | ||
| MO# or S/N | 30000114 | Alt. S/N | |||
| IP Speed: | 1750 | HP rating: | 200 | Cat. Rating: | 479 |
| OP Speed: | 24.0 | SF / SC | 2.39 | ||
| Date: | 01-13 | Oil Capacity: | 48.00 | ||
| Additional Catalog Information | |||||
|---|---|---|---|---|---|
| Torque Rating | 1,255,000 Lb-Inches | High Speed Shaft Dia. | 3.000 | ||
| Catalog Weight | 8,000 Lbs Approx. | Low Speed Shaft Dia. | 8.500 | ||
| Assembly | 19 | Centers | 39.30 | Shaft Height | 18 Inches |
| H.S. Shaft RPM |
Ratio | Approx. L.S. Shaft RPM |
Mechanical HP Ratings |
Thermal ratings W/O cooling |
|---|---|---|---|---|
| 1750 RPM | 72.76 | 25 RPM | 479 HP | 286 HP |
| 1430 RPM | 20 RPM | 393 HP | 279 HP | |
| 1170 RPM | 16.5 RPM | 322 HP | 274 HP | |
| 870 RPM | 12.5 RPM | 240 HP | Exceeds Mechanical | |
| 720 RPM | 10.0 RPM | 199 HP | Exceeds Mechanical | |
| 580 RPM | 8.3 RPM | 160 HP | Exceeds Mechanical |
| Condition |
|---|
|

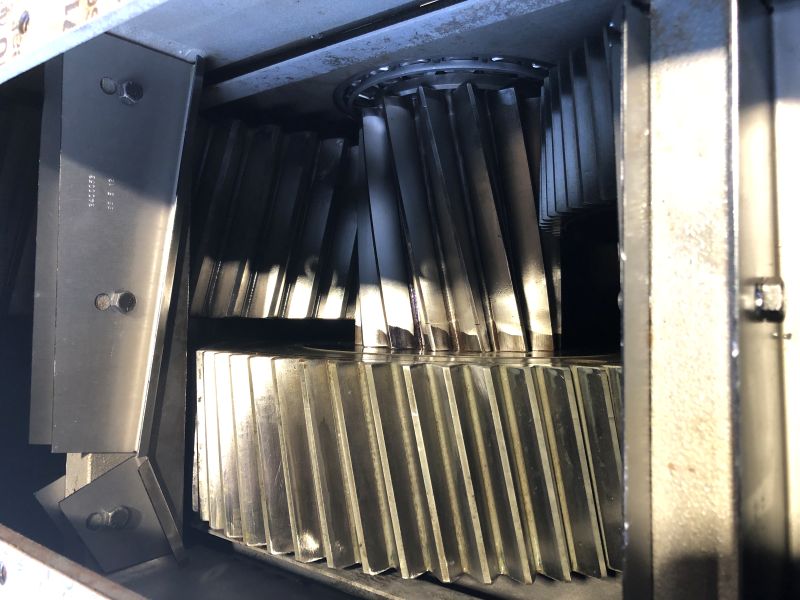

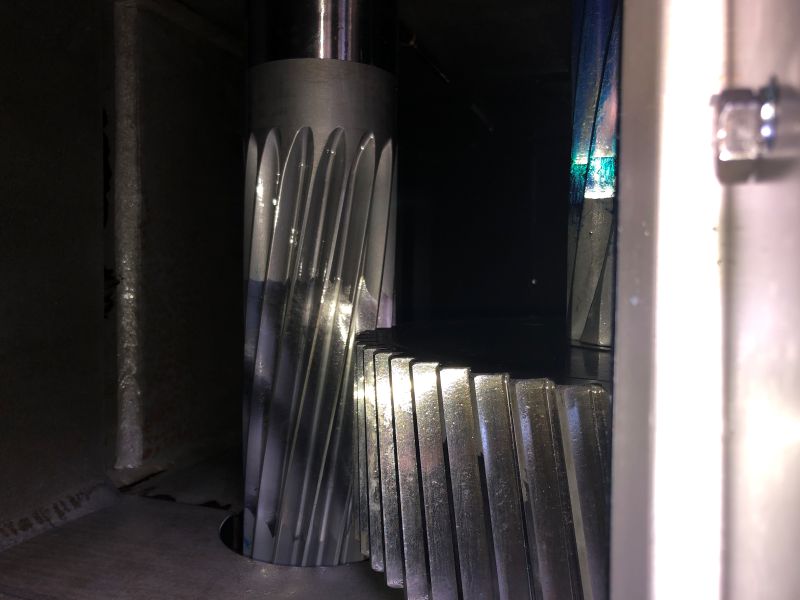

Notes: Factory complete reman. |
| Operate gear drives only at horsepower, speed and ratio shown on nameplate. Before changing any one of these, submit complete nameplate data and new application conditions to the manufacturer for correct oil level, accessories, parts and application approval. Check unit for thermal capacity. Check unit for over hung load capacity if shaft connections are anything other the direct coupled. |
