- Speed Reducer Data Sheet -
N A M E P L A T E       D A T A

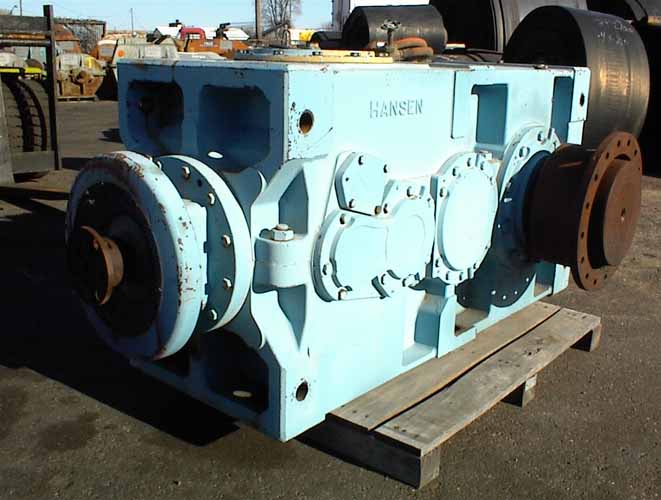

Manufacturer:       HANSEN POWERPLUS TRANSMISSIONS Our ID No.       005855
Model:       RDK33F-BNN 31.5 Ratio:       32.72:1
MO# or S/N       R04A 127533 Alt. S/N
IP Speed       1750 RPM HP rating       500 HP Cat. Rating       890 HP
OP Speed:       54 RPM SF / SC       1.78 SF
Date       Oil Capacity       47 GALLONS
A D D I T I O N A L      C A T A L O G       I N F O R M A T I O N
Torque Rating       1,050,000 Lb-Inches Shaft Diameters High Speed:   3.000
Low Speed:   8.000
Weight       8,000 Lbs Approx. Assembly       ASSY BNN
H.S. Shaft
RPM		 Ratio Approx. L.S.
Shaft RPM		 HP
Ratings		 Thermal ratings
with 1 cooling fan
1750 RPM
32.72:1

56 RPM
890 HP
600 HP
1170 RPM
37 RPM
600 HP
470 HP
870 RPM
27.5 RPM
450 HP
380 HP
Notes:
Condition: Used, Very Good
